90 to 190

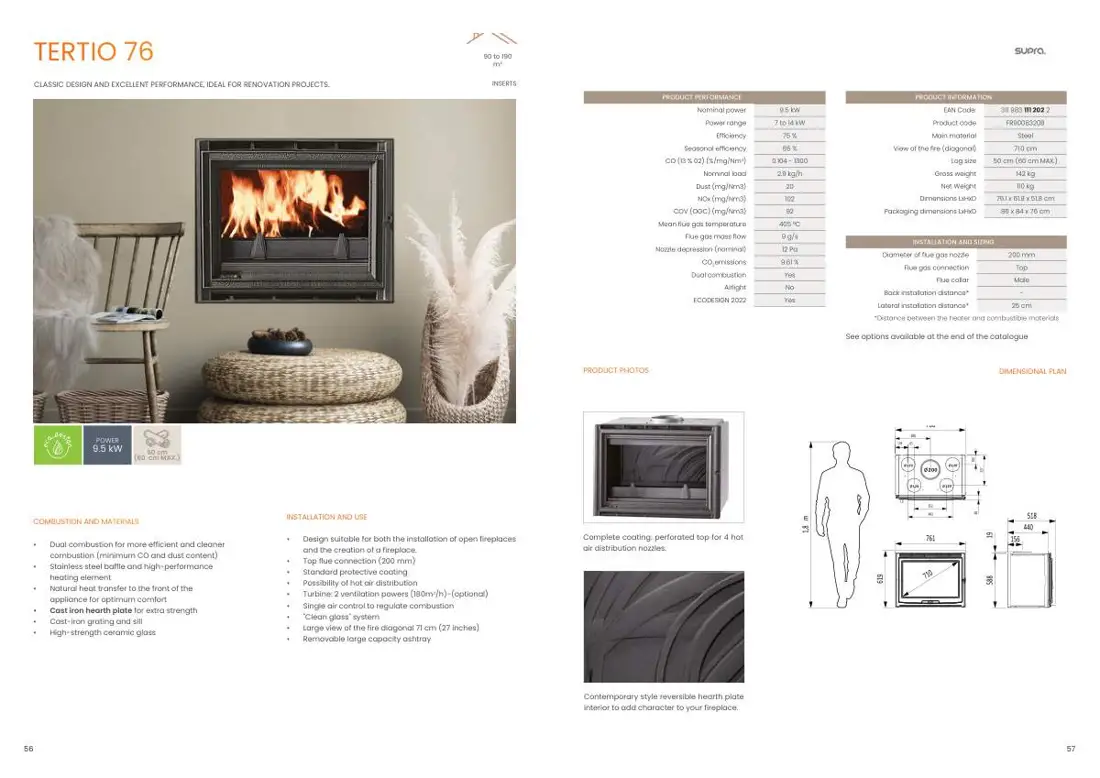

m² TERTIO 76
CLASSIC DESIGN AND EXCELLENT PERFORMANCE, IDEAL FOR RENOVATION PROJECTS. INSERTS
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 9.5 kW EAN Code: 311 983 111 202 2
Power range 7 to 14 kW Product code FR9008320B
Efficiency 75 % Main material Steel
Seasonal efficiency 65 % View of the fire (diagonal) 71.0 cm
CO (13 % 02) (%/mg/Nm3) 0.104 - 1300 Log size 50 cm (60 cm MAX.)
Nominal load 2.9 kg/h Gross weight 142 kg
Dust (mg/Nm3) 20 Net Weight 110 kg
NOx (mg/Nm3) 102 Dimensions LxHxD 76.1 x 61.9 x 51.8 cm
COV (OGC) (mg/Nm3) 92 Packaging dimensions LxHxD 86 x 84 x 76 cm
Mean flue gas temperature 405 °C
Flue gas mass flow 9 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 200 mm
CO2emissions 9.61 % Flue gas connection Top
Dual combustion Yes
Flue collar Male
Airlight No
Back installation distance* -
ECODESIGN 2022 Yes
Lateral installation distance* 25 cm
*Distance between the heater and combustible materials
See options available at the end of the catalogue
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER
9.5 kW 50 cm
(60 cm MAX.)
INSTALLATION AND USE COMBUSTION AND MATERIALS
• Design suitable for both the installation of open fireplaces Complete coating: perforated top for 4 hot • Dual combustion for more efficient and cleaner and the creation of a fireplace. air distribution nozzles. combustion (minimum CO and dust content) • Top flue connection (200 mm) • Stainless steel baffle and high-performance • Standard protective coating heating element • Possibility of hot air distribution • Natural heat transfer to the front of the • Turbine: 2 ventilation powers (180m3/h)-(optional) appliance for optimum comfort • Single air control to regulate combustion • Cast iron hearth plate for extra strength • "Clean glass" system • Cast-iron grating and sill • Large view of the fire diagonal 71 cm (27 inches) • High-strength ceramic glass • Removable large capacity ashtray
Contemporary style reversible hearth plate
interior to add character to your fireplace.
