60 to 120

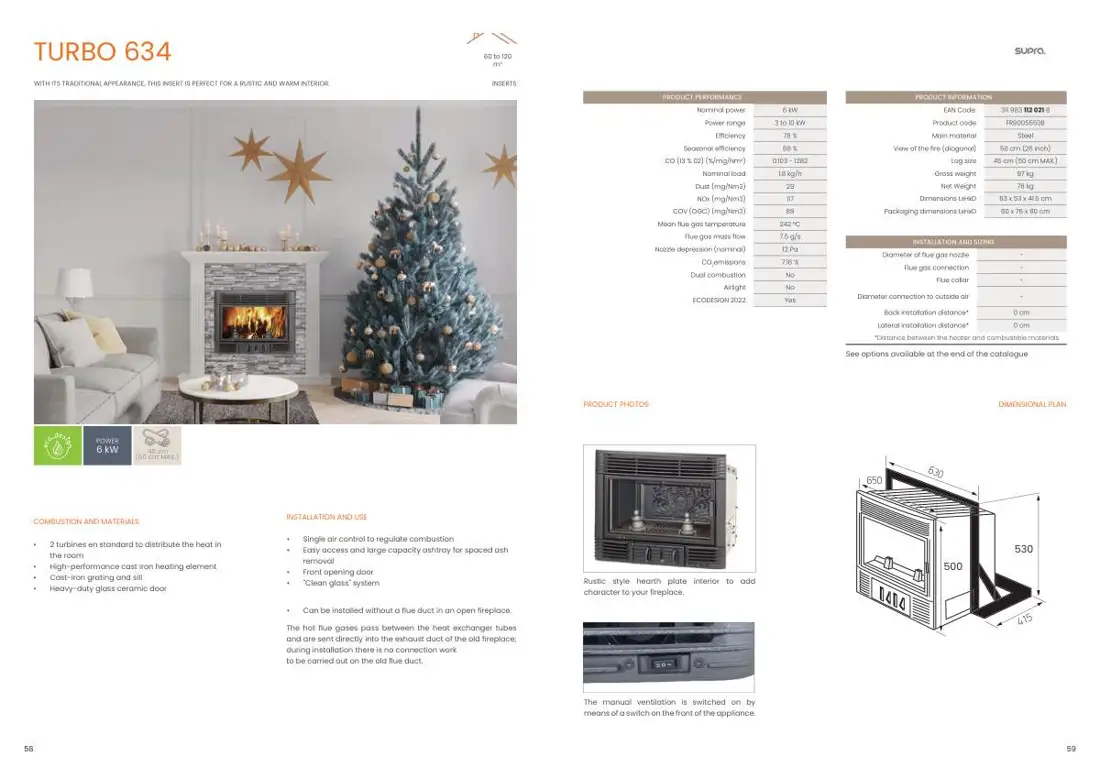

m² TURBO 634
WITH ITS TRADITIONAL APPEARANCE, THIS INSERT IS PERFECT FOR A RUSTIC AND WARM INTERIOR. INSERTS
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 6 kW EAN Code: 311 983 112 021 8
Power range 3 to 10 kW Product code FR9005550B
Efficiency 78 % Main material Steel
Seasonal efficiency 68 % View of the fire (diagonal) 58 cm (26 inch)
CO (13 % 02) (%/mg/Nm3) 0.103 - 1282 Log size 45 cm (50 cm MAX.)
Nominal load 1.8 kg/h Gross weight 97 kg
Dust (mg/Nm3) 29 Net Weight 78 kg
NOx (mg/Nm3) 117 Dimensions LxHxD 63 x 53 x 41.5 cm
COV (OGC) (mg/Nm3) 89 Packaging dimensions LxHxD 60 x 76 x 80 cm
Mean flue gas temperature 242 °C
Flue gas mass flow 7.5 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle -
CO2emissions 7.16 % Flue gas connection -
Dual combustion No
Flue collar -
Airlight No
Diameter connection to outside air - ECODESIGN 2022 Yes
Back installation distance* 0 cm
Lateral installation distance* 0 cm
*Distance between the heater and combustible materials
See options available at the end of the catalogue
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER
6 kW 45 cm (50 cm MAX.)
630 650
INSTALLATION AND USE COMBUSTION AND MATERIALS
• Single air control to regulate combustion
• 2 turbines en standard to distribute the heat in 500 • Easy access and large capacity ashtray for spaced ash 530 the room removal • High-performance cast iron heating element 500530 • Front opening door • Cast-iron grating and sill • "Clean glass" system Rustic style hearth plate interior to add • Heavy-duty glass ceramic door character to your fireplace.
• Can be installed without a flue duct in an open fireplace.
415
The hot flue gases pass between the heat exchanger tubes
and are sent directly into the exhaust duct of the old fireplace;
during installation there is no connection work
to be carried out on the old flue duct.
The manual ventilation is switched on by
means of a switch on the front of the appliance.
