90 to 180

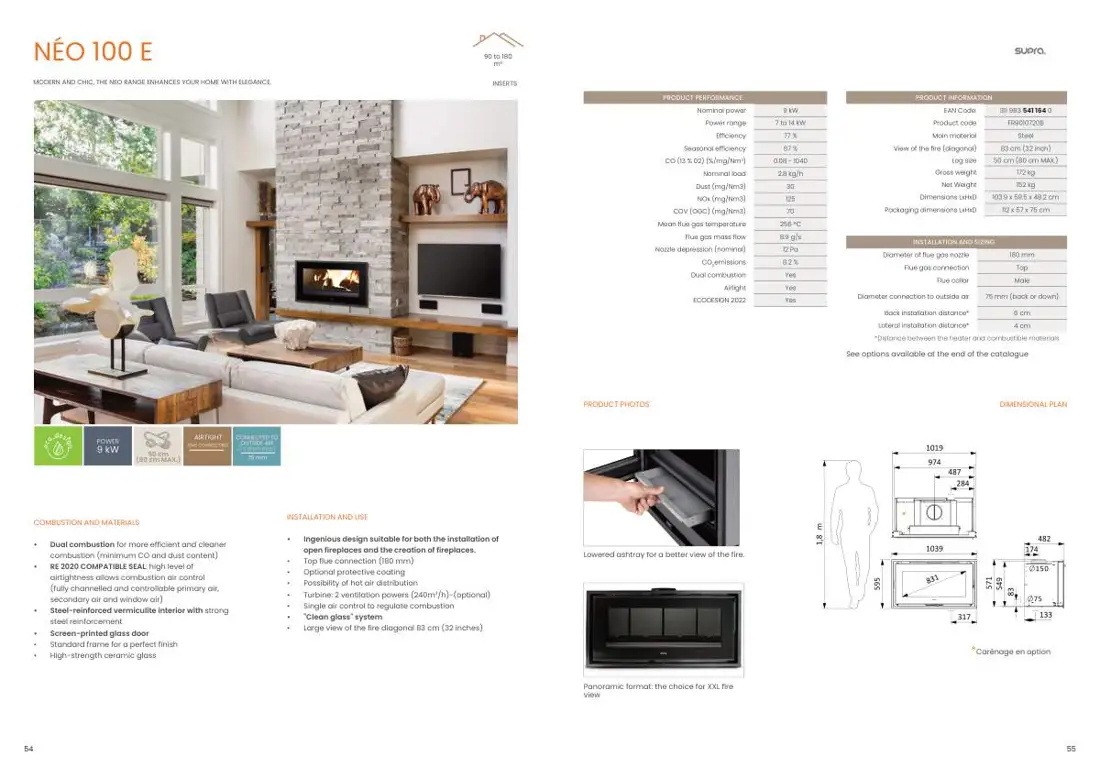

m² NÉO 100 E
MODERN AND CHIC, THE NEO RANGE ENHANCES YOUR HOME WITH ELEGANCE. INSERTS
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 9 kW EAN Code: 311 983 541 164 0
Power range 7 to 14 kW Product code FR9010720B
Efficiency 77 % Main material Steel
Seasonal efficiency 67 % View of the fire (diagonal) 83 cm (32 inch)
CO (13 % 02) (%/mg/Nm3) 0.08 - 1040 Log size 50 cm (80 cm MAX.)
Nominal load 2.8 kg/h Gross weight 172 kg
Dust (mg/Nm3) 30 Net Weight 152 kg
NOx (mg/Nm3) 125 Dimensions LxHxD 103.9 x 59.5 x 48.2 cm
COV (OGC) (mg/Nm3) 70 Packaging dimensions LxHxD 112 x 57 x 75 cm
Mean flue gas temperature 256 °C
Flue gas mass flow 8.9 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 180 mm
CO2emissions 8.2 % Flue gas connection Top
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 75 mm (back or down) ECODESIGN 2022 Yes
Back installation distance* 6 cm
Lateral installation distance* 4 cm
*Distance between the heater and combustible materials
See options available at the end of the catalogue
PRODUCT PHOTOS DIMENSIONAL PLAN
AIRTIGHT CONNECTED TO POWER AND CONNECTIBLE OUTSIDE AIR
9 kW 50 cm (in diameter)75 mm (80 cm MAX.)
INSTALLATION AND USE * COMBUSTION AND MATERIALS
• Ingenious design suitable for both the installation of • Dual combustion for more efficient and cleaner open fireplaces and the creation of fireplaces. combustion (minimum CO and dust content) Lowered ashtray for a better view of the fire. • Top flue connection (180 mm) • RE 2020 COMPATIBLE SEAL: high level of • Optional protective coating airtightness allows combustion air control • Possibility of hot air distribution (fully channelled and controllable primary air, • Turbine: 2 ventilation powers (240m3/h)-(optional) secondary air and window air) • Single air control to regulate combustion • Steel-reinforced vermiculite interior with strong • "Clean glass" system steel reinforcement • Large view of the fire diagonal 83 cm (32 inches) • Screen-printed glass door
• Standard frame for a perfect finish
en option • High-strength ceramic glass *Carénage
Panoramic format: the choice for XXL fire
view
54 55
