100 to 200

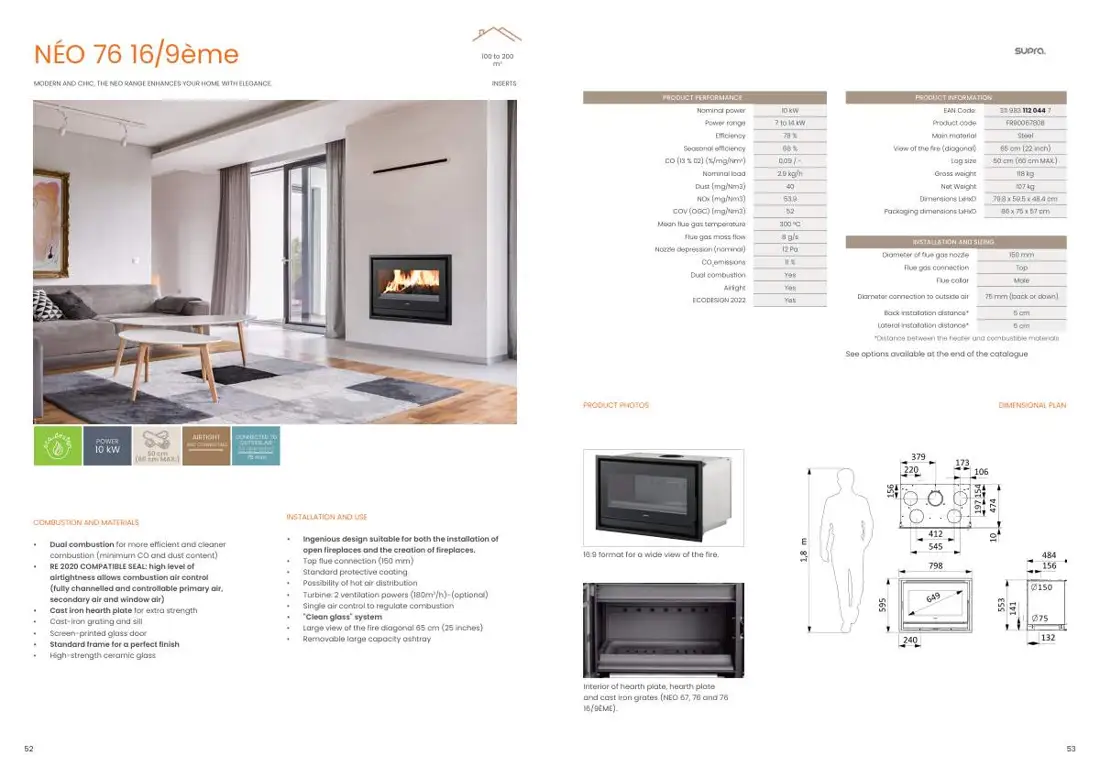

m² NÉO 76 16/9ème
MODERN AND CHIC, THE NEO RANGE ENHANCES YOUR HOME WITH ELEGANCE. INSERTS
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 10 kW EAN Code: 311 983 112 044 7
Power range 7 to 14 kW Product code FR9006780B
Efficiency 78 % Main material Steel
Seasonal efficiency 68 % View of the fire (diagonal) 65 cm (22 inch)
CO (13 % 02) (%/mg/Nm3) 0,09 / - Log size 50 cm (60 cm MAX.)
Nominal load 2.9 kg/h Gross weight 118 kg
Dust (mg/Nm3) 40 Net Weight 107 kg
NOx (mg/Nm3) 53.9 Dimensions LxHxD 79.8 x 59.5 x 48.4 cm
COV (OGC) (mg/Nm3) 52 Packaging dimensions LxHxD 86 x 75 x 57 cm
Mean flue gas temperature 300 °C
Flue gas mass flow 8 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 11 % Flue gas connection Top
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 75 mm (back or down) ECODESIGN 2022 Yes
Back installation distance* 5 cm
Lateral installation distance* 5 cm
*Distance between the heater and combustible materials
See options available at the end of the catalogue
PRODUCT PHOTOS DIMENSIONAL PLAN
AIRTIGHT CONNECTED TO POWER AND CONNECTIBLE OUTSIDE AIR
10 kW 50 cm (in diameter)75 mm (60 cm MAX.)
INSTALLATION AND USE COMBUSTION AND MATERIALS
• Ingenious design suitable for both the installation of • Dual combustion for more efficient and cleaner open fireplaces and the creation of fireplaces. combustion (minimum CO and dust content) 16:9 format for a wide view of the fire. • Top flue connection (150 mm) • RE 2020 COMPATIBLE SEAL: high level of • Standard protective coating airtightness allows combustion air control • Possibility of hot air distribution (fully channelled and controllable primary air, • Turbine: 2 ventilation powers (180m3/h)-(optional) secondary air and window air) • Single air control to regulate combustion • Cast iron hearth plate for extra strength • "Clean glass" system • Cast-iron grating and sill • Large view of the fire diagonal 65 cm (25 inches) • Screen-printed glass door • Removable large capacity ashtray • Standard frame for a perfect finish
• High-strength ceramic glass
Interior of hearth plate, hearth plate
and cast iron grates (NEO 67, 76 and 76
16/9ÈME).
