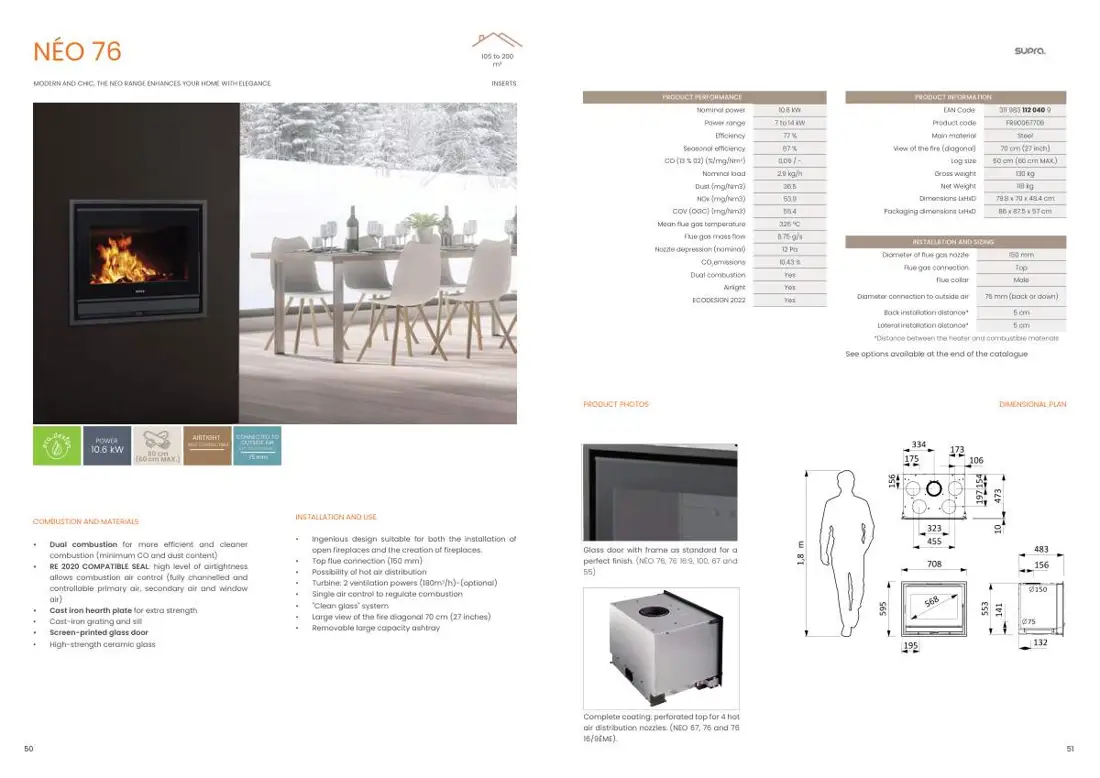

m² NÉO 76
MODERN AND CHIC, THE NEO RANGE ENHANCES YOUR HOME WITH ELEGANCE. INSERTS
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 10.6 kW EAN Code: 311 983 112 040 9
Power range 7 to 14 kW Product code FR9006770B
Efficiency 77 % Main material Steel
Seasonal efficiency 67 % View of the fire (diagonal) 70 cm (27 inch)
CO (13 % 02) (%/mg/Nm3) 0,09 / - Log size 50 cm (60 cm MAX.)
Nominal load 2.9 kg/h Gross weight 130 kg
Dust (mg/Nm3) 36.5 Net Weight 118 kg
NOx (mg/Nm3) 53.9 Dimensions LxHxD 79.8 x 70 x 48.4 cm
COV (OGC) (mg/Nm3) 55.4 Packaging dimensions LxHxD 86 x 87.5 x 57 cm
Mean flue gas temperature 326 °C
Flue gas mass flow 8.75 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 10.43 % Flue gas connection Top
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 75 mm (back or down) ECODESIGN 2022 Yes
Back installation distance* 5 cm
Lateral installation distance* 5 cm
*Distance between the heater and combustible materials
See options available at the end of the catalogue
PRODUCT PHOTOS DIMENSIONAL PLAN
AIRTIGHT CONNECTED TO POWER AND CONNECTIBLE OUTSIDE AIR
10.6 kW 50 cm (in diameter)75 mm (60 cm MAX.)
INSTALLATION AND USE COMBUSTION AND MATERIALS
• Ingenious design suitable for both the installation of • Dual combustion for more efficient and cleaner open fireplaces and the creation of fireplaces. Glass door with frame as standard for a combustion (minimum CO and dust content) • Top flue connection (150 mm) perfect finish. (NÉO 76, 76 16:9, 100, 67 and • RE 2020 COMPATIBLE SEAL: high level of airtightness • Possibility of hot air distribution 55) allows combustion air control (fully channelled and • Turbine: 2 ventilation powers (180m3/h)-(optional) controllable primary air, secondary air and window • Single air control to regulate combustion air) • "Clean glass" system • Cast iron hearth plate for extra strength • Large view of the fire diagonal 70 cm (27 inches) • Cast-iron grating and sill • Removable large capacity ashtray • Screen-printed glass door
• High-strength ceramic glass
Complete coating: perforated top for 4 hot
air distribution nozzles. (NEO 67, 76 and 76
16/9ÈME).
