80 to 160

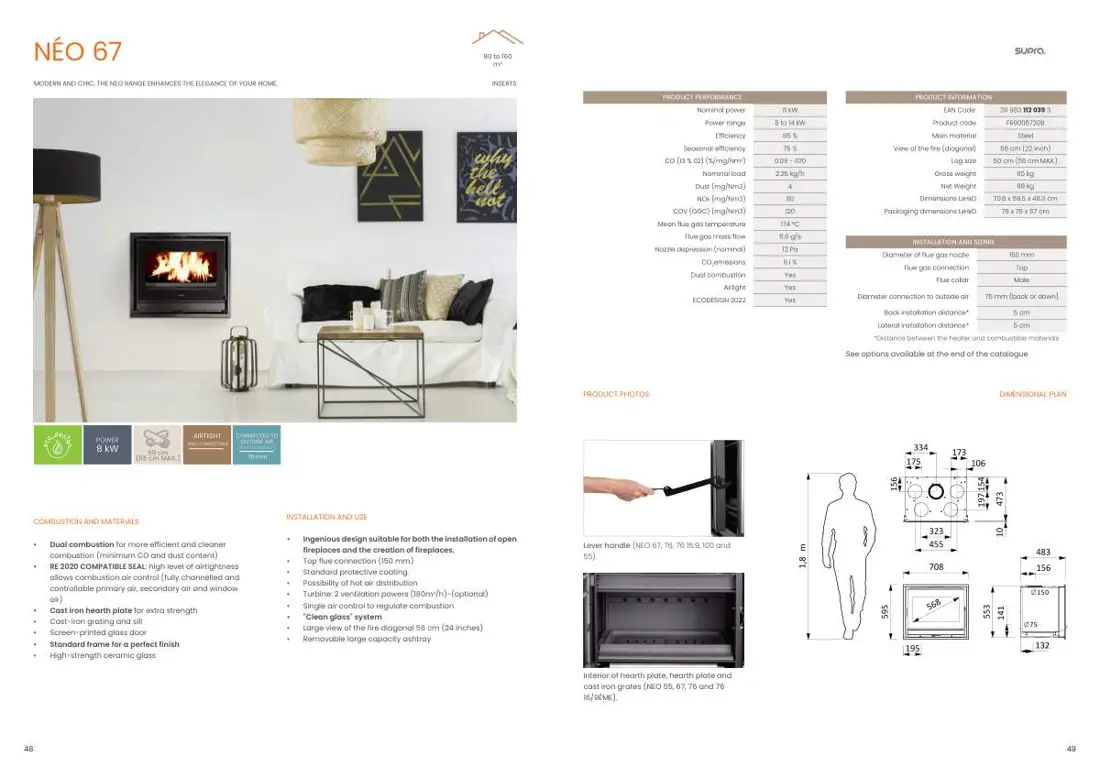

m² NÉO 67
MODERN AND CHIC, THE NEO RANGE ENHANCES THE ELEGANCE OF YOUR HOME. INSERTS
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 8 kW EAN Code: 311 983 112 039 3
Power range 5 to 14 kW Product code FR9006720B
Efficiency 85 % Main material Steel
Seasonal efficiency 75 % View of the fire (diagonal) 56 cm (22 inch)
CO (13 % 02) (%/mg/Nm3) 0.09 - 1170 Log size 50 cm (55 cm MAX.)
Nominal load 2.25 kg/h Gross weight 110 kg
Dust (mg/Nm3) 4 Net Weight 99 kg
NOx (mg/Nm3) 110 Dimensions LxHxD 70.8 x 59.5 x 48.3 cm
COV (OGC) (mg/Nm3) 120 Packaging dimensions LxHxD 76 x 76 x 57 cm
Mean flue gas temperature 174 °C
Flue gas mass flow 6.8 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 9.1 % Flue gas connection Top
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 75 mm (back or down) ECODESIGN 2022 Yes
Back installation distance* 5 cm
Lateral installation distance* 5 cm
*Distance between the heater and combustible materials
See options available at the end of the catalogue
PRODUCT PHOTOS DIMENSIONAL PLAN
AIRTIGHT CONNECTED TO POWER AND CONNECTIBLE OUTSIDE AIR
8 kW 50 cm (in diameter) (55 cm MAX.) 75 mm
INSTALLATION AND USE COMBUSTION AND MATERIALS
• Ingenious design suitable for both the installation of open • Dual combustion for more efficient and cleaner Lever handle (NEO 67, 76, 76 16:9, 100 and fireplaces and the creation of fireplaces. combustion (minimum CO and dust content) 55). • Top flue connection (150 mm) • RE 2020 COMPATIBLE SEAL: high level of airtightness • Standard protective coating allows combustion air control (fully channelled and • Possibility of hot air distribution controllable primary air, secondary air and window • Turbine: 2 ventilation powers (180m3/h)-(optional) air) • Single air control to regulate combustion • Cast iron hearth plate for extra strength • "Clean glass" system • Cast-iron grating and sill • Large view of the fire diagonal 56 cm (24 inches) • Screen-printed glass door • Removable large capacity ashtray • Standard frame for a perfect finish
• High-strength ceramic glass
Interior of hearth plate, hearth plate and
cast iron grates (NEO 55, 67, 76 and 76
16/9ÈME).
48 49
