60 to 120

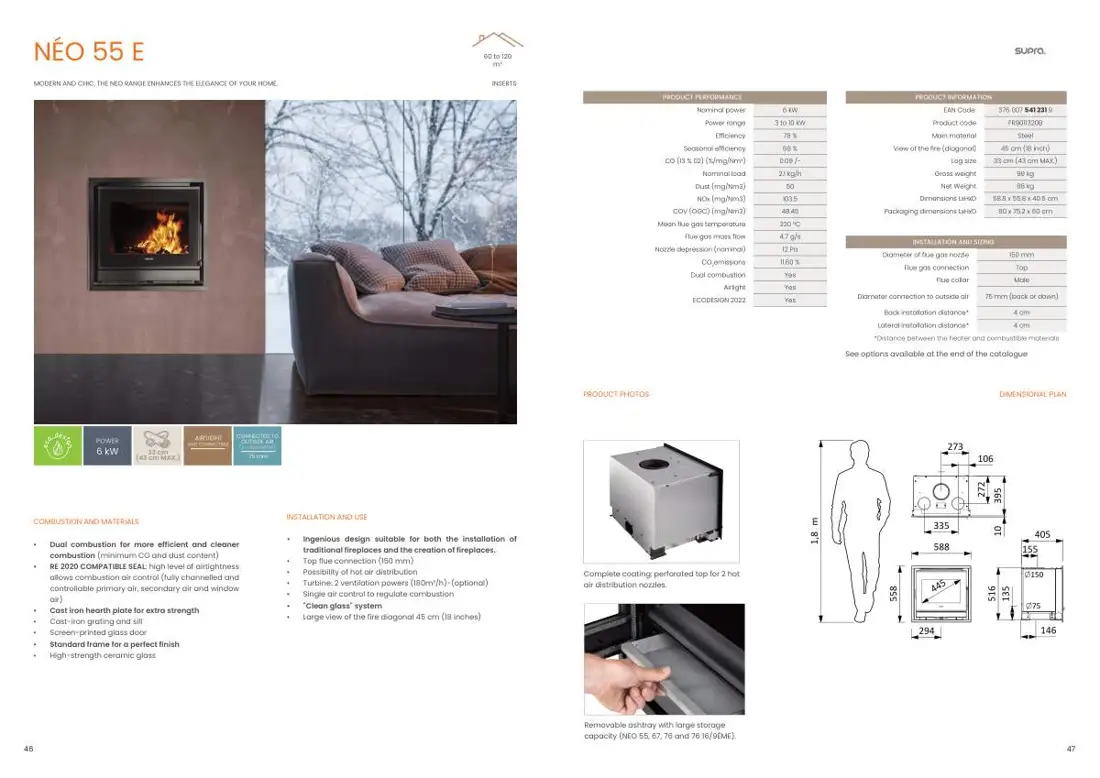

m² NÉO 55 E
MODERN AND CHIC, THE NEO RANGE ENHANCES THE ELEGANCE OF YOUR HOME. INSERTS
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 6 kW EAN Code: 376 007 541 231 9
Power range 3 to 10 kW Product code FR9011320B
Efficiency 78 % Main material Steel
Seasonal efficiency 68 % View of the fire (diagonal) 45 cm (18 inch)
CO (13 % 02) (%/mg/Nm3) 0.09 /- Log size 33 cm (43 cm MAX.)
Nominal load 2.1 kg/h Gross weight 99 kg
Dust (mg/Nm3) 50 Net Weight 88 kg
NOx (mg/Nm3) 103.5 Dimensions LxHxD 58.8 x 55.8 x 40.5 cm
COV (OGC) (mg/Nm3) 48.45 Packaging dimensions LxHxD 80 x 75.2 x 60 cm
Mean flue gas temperature 220 °C
Flue gas mass flow 4.7 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 11.60 % Flue gas connection Top
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 75 mm (back or down) ECODESIGN 2022 Yes
Back installation distance* 4 cm
Lateral installation distance* 4 cm
*Distance between the heater and combustible materials
See options available at the end of the catalogue
PRODUCT PHOTOS DIMENSIONAL PLAN
CONNECTED TO AIRTIGHT OUTSIDE AIR POWER AND CONNECTIBLE
33 cm 6 kW (in diameter) (43 cm MAX.) 75 mm
INSTALLATION AND USE COMBUSTION AND MATERIALS
• Ingenious design suitable for both the installation of • Dual combustion for more efficient and cleaner traditional fireplaces and the creation of fireplaces. combustion (minimum CO and dust content) • Top flue connection (150 mm) • RE 2020 COMPATIBLE SEAL: high level of airtightness
• Possibility of hot air distribution Complete coating: perforated top for 2 hot allows combustion air control (fully channelled and
• Turbine: 2 ventilation powers (180m3/h)-(optional) air distribution nozzles. controllable primary air, secondary air and window • Single air control to regulate combustion air) • "Clean glass" system • Cast iron hearth plate for extra strength • Large view of the fire diagonal 45 cm (18 inches) • Cast-iron grating and sill
• Screen-printed glass door
• Standard frame for a perfect finish
• High-strength ceramic glass
Removable ashtray with large storage
capacity (NEO 55, 67, 76 and 76 16/9ÈME).
