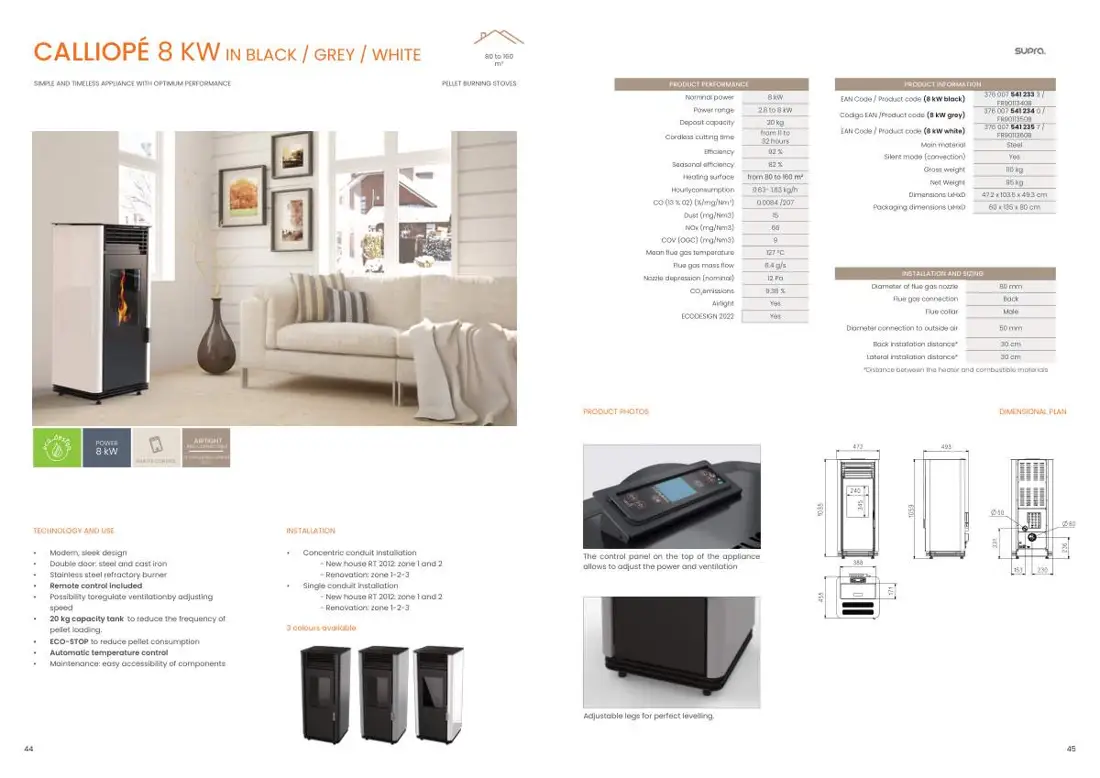

80 to 160 IN BLACK / GREY / WHITE m² CALLIOPÉ 8 KW
SIMPLE AND TIMELESS APPLIANCE WITH OPTIMUM PERFORMANCE PELLET BURNING STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 8 kW EAN Code / Product code (8 kW black) 376 007 541 233 3 / FR9011340B
Power range 2.8 to 8 kW 376 007 541 234 0 / Código EAN /Product code (8 kW grey) FR9011350B Deposit capacity 20 kg 376 007 541 235 7 /
from 11 to EAN Code / Product code (8 kW white) FR9011360B Cordless cutting time 32 hours Main material Steel
Efficiency 92 %
Silent mode (convection) Yes
Seasonal efficiency 82 %
Gross weight 110 kg
Heating surface from 80 to 160 m² Net Weight 95 kg
Hourlyconsumption 0.63- 1.83 kg/h Dimensions LxHxD 47.2 x 103.5 x 49.3 cm
CO (13 % 02) (%/mg/Nm3) 0.0084 /207 Packaging dimensions LxHxD 60 x 135 x 80 cm
Dust (mg/Nm3) 15
NOx (mg/Nm3) 66
COV (OGC) (mg/Nm3) 9
Mean flue gas temperature 127 °C
Flue gas mass flow 6.4 g/s
INSTALLATION AND SIZING Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 80 mm CO2emissions 9.38 %
Flue gas connection Back Airlight Yes
Flue collar Male ECODESIGN 2022 Yes
Diameter connection to outside air 50 mm
Back installation distance* 30 cm
Lateral installation distance* 30 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE
8 kW OF CONCENTRIC CONDUIT
REMOTE CONTROL (CC)
TECHNOLOGY AND USE INSTALLATION
• Modern, sleek design • Concentric conduit installation The control panel on the top of the appliance
• Double door: steel and cast iron - New house RT 2012: zone 1 and 2 allows to adjust the power and ventilation
• Stainless steel refractory burner - Renovation: zone 1-2-3
• Remote control included • Single conduit installation
• Possibility toregulate ventilationby adjusting - New house RT 2012: zone 1 and 2
speed - Renovation: zone 1-2-3
• 20 kg capacity tank to reduce the frequency of
pellet loading. 3 colours available
• ECO-STOP to reduce pellet consumption
• Automatic temperature control
• Maintenance: easy accessibility of components
Adjustable legs for perfect levelling.
