90 to 180

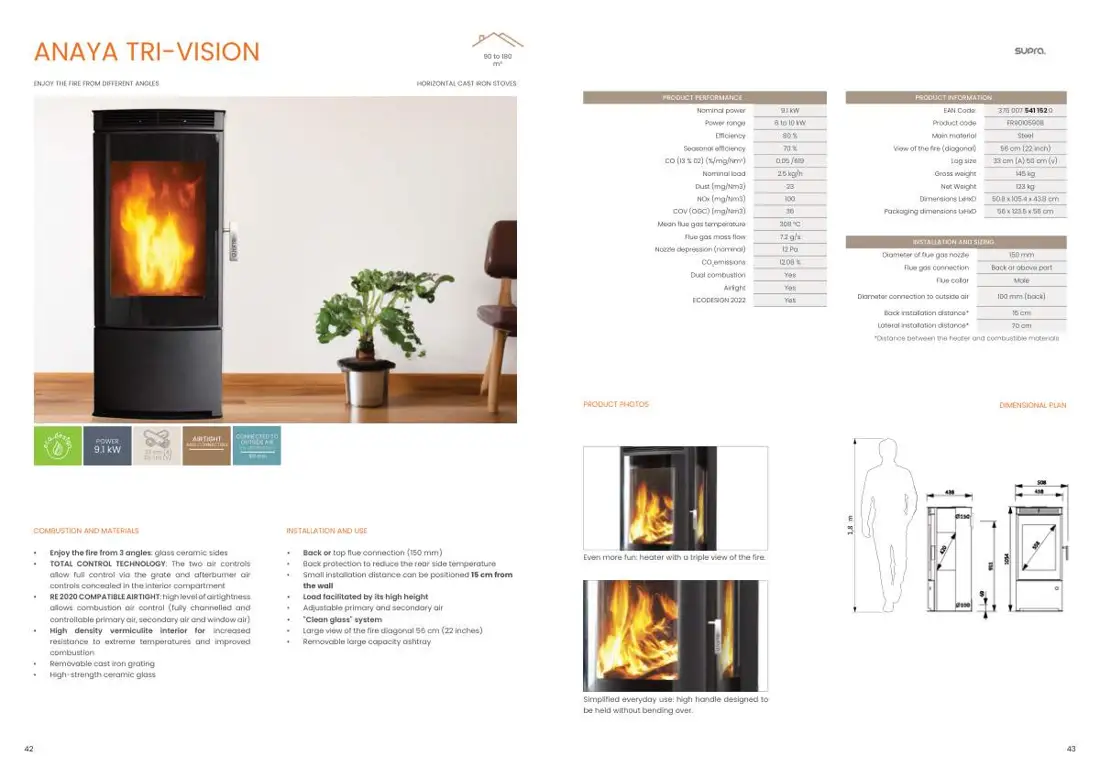

m² ANAYA TRI-VISION
ENJOY THE FIRE FROM DIFFERENT ANGLES HORIZONTAL CAST IRON STOVES
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 9.1 kW EAN Code: 376 007 541 152 0
Power range 6 to 10 kW Product code FR9010590B
Efficiency 80 % Main material Steel
Seasonal efficiency 70 % View of the fire (diagonal) 56 cm (22 inch)
CO (13 % 02) (%/mg/Nm3) 0.05 /619 Log size 33 cm (A) 50 cm (v)
Nominal load 2.5 kg/h Gross weight 145 kg
Dust (mg/Nm3) 23 Net Weight 123 kg
NOx (mg/Nm3) 100 Dimensions LxHxD 50.8 x 105.4 x 43.8 cm
COV (OGC) (mg/Nm3) 36 Packaging dimensions LxHxD 56 x 123.5 x 56 cm
Mean flue gas temperature 308 °C
Flue gas mass flow 7.2 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 12.08 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back) ECODESIGN 2022 Yes
Back installation distance* 15 cm
Lateral installation distance* 70 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE CONNECTEDOUTSIDE AIRTO
33 cm (A) 9.1 kW (in diameter) 100 mm 50 cm (V)
COMBUSTION AND MATERIALS INSTALLATION AND USE
• Enjoy the fire from 3 angles: glass ceramic sides • Back or top flue connection (150 mm) Even more fun: heater with a triple view of the fire.
• TOTAL CONTROL TECHNOLOGY: The two air controls • Back protection to reduce the rear side temperature
allow full control via the grate and afterburner air • Small installation distance can be positioned 15 cm from
controls concealed in the interior compartment the wall
• RE 2020 COMPATIBLE AIRTIGHT: high level of airtightness • Load facilitated by its high height
allows combustion air control (fully channelled and • Adjustable primary and secondary air
controllable primary air, secondary air and window air) • "Clean glass" system
• High density vermiculite interior for increased • Large view of the fire diagonal 56 cm (22 inches)
resistance to extreme temperatures and improved • Removable large capacity ashtray
combustion
• Removable cast iron grating
• High-strength ceramic glass
Simplified everyday use: high handle designed to
be held without bending over.
