NEW
48 to 105

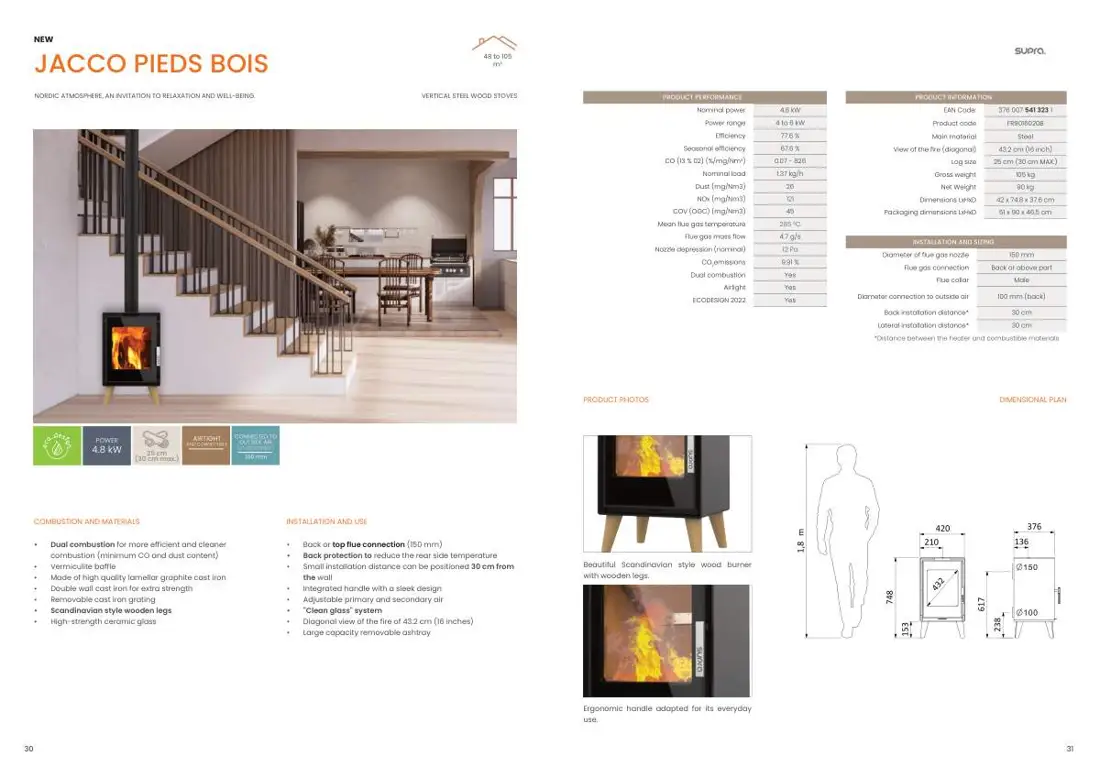

m² JACCO PIEDS BOIS
NORDIC ATMOSPHERE, AN INVITATION TO RELAXATION AND WELL-BEING. VERTICAL STEEL WOOD STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 4.8 kW EAN Code: 376 007 541 323 1
Power range 4 to 6 kW Product code FR9016020B
Efficiency 77.6 % Main material Steel
Seasonal efficiency 67.6 % View of the fire (diagonal) 43.2 cm (16 inch)
CO (13 % 02) (%/mg/Nm3) 0.07 - 826 Log size 25 cm (30 cm MAX.)
Nominal load 1.37 kg/h Gross weight 105 kg
Dust (mg/Nm3) 26 Net Weight 90 kg
NOx (mg/Nm3) 121 Dimensions LxHxD 42 x 74.8 x 37.6 cm
COV (OGC) (mg/Nm3) 45 Packaging dimensions LxHxD 51 x 90 x 46.5 cm
Mean flue gas temperature 285 °C
Flue gas mass flow 4.7 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 9.91 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back) ECODESIGN 2022 Yes
Back installation distance* 30 cm
Lateral installation distance* 30 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE CONNECTEDOUTSIDE AIRTO
4.8 kW 25 cm (in 100diameter)mm (30 cm max.)
COMBUSTION AND MATERIALS INSTALLATION AND USE
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm)
combustion (minimum CO and dust content) • Back protection to reduce the rear side temperature
• Vermiculite baffle • Small installation distance can be positioned 30 cm from Beautiful Scandinavian style wood burner
• Made of high quality lamellar graphite cast iron the wall with wooden legs.
• Double wall cast iron for extra strength • Integrated handle with a sleek design
• Removable cast iron grating • Adjustable primary and secondary air
• Scandinavian style wooden legs • "Clean glass" system
• High-strength ceramic glass • Diagonal view of the fire of 43.2 cm (16 inches)
• Large capacity removable ashtray
Ergonomic handle adapted for its everyday
use.
