48 to 105

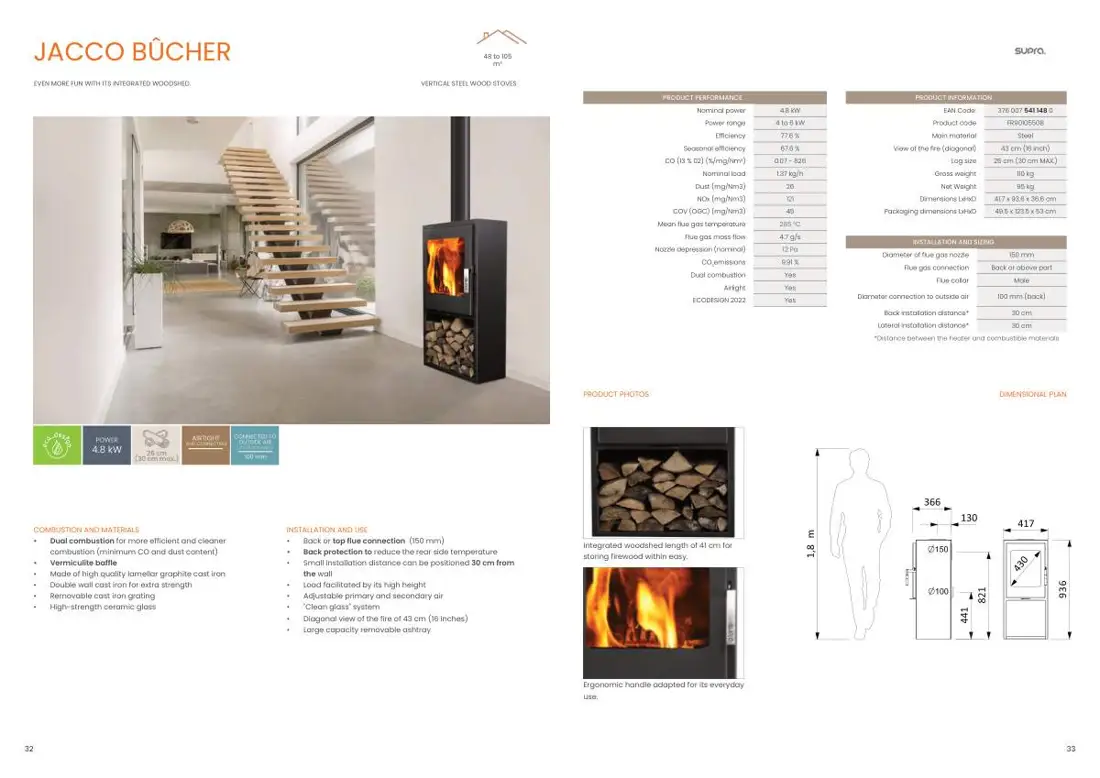

m²JACCO BÛCHER
EVEN MORE FUN WITH ITS INTEGRATED WOODSHED. VERTICAL STEEL WOOD STOVES
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 4.8 kW EAN Code: 376 007 541 148 0
Power range 4 to 6 kW Product code FR9010550B
Efficiency 77.6 % Main material Steel
Seasonal efficiency 67.6 % View of the fire (diagonal) 43 cm (16 inch)
CO (13 % 02) (%/mg/Nm3) 0.07 - 826 Log size 25 cm (30 cm MAX.)
Nominal load 1.37 kg/h Gross weight 110 kg
Dust (mg/Nm3) 26 Net Weight 95 kg
NOx (mg/Nm3) 121 Dimensions LxHxD 41.7 x 93.6 x 36.6 cm
COV (OGC) (mg/Nm3) 45 Packaging dimensions LxHxD 49.5 x 123.5 x 53 cm
Mean flue gas temperature 285 °C
Flue gas mass flow 4.7 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 9.91 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back) ECODESIGN 2022 Yes
Back installation distance* 30 cm
Lateral installation distance* 30 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE CONNECTEDOUTSIDE AIRTO
4.8 kW 25 cm (in 100diameter)mm (30 cm max.)
COMBUSTION AND MATERIALS INSTALLATION AND USE
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm) Integrated woodshed length of 41 cm for
combustion (minimum CO and dust content) • Back protection to reduce the rear side temperature storing firewood within easy.
• Vermiculite baffle • Small installation distance can be positioned 30 cm from
• Made of high quality lamellar graphite cast iron the wall
• Double wall cast iron for extra strength • Load facilitated by its high height
• Removable cast iron grating • Adjustable primary and secondary air
• High-strength ceramic glass • "Clean glass" system
• Diagonal view of the fire of 43 cm (16 inches)
• Large capacity removable ashtray
Ergonomic handle adapted for its everyday
use.
