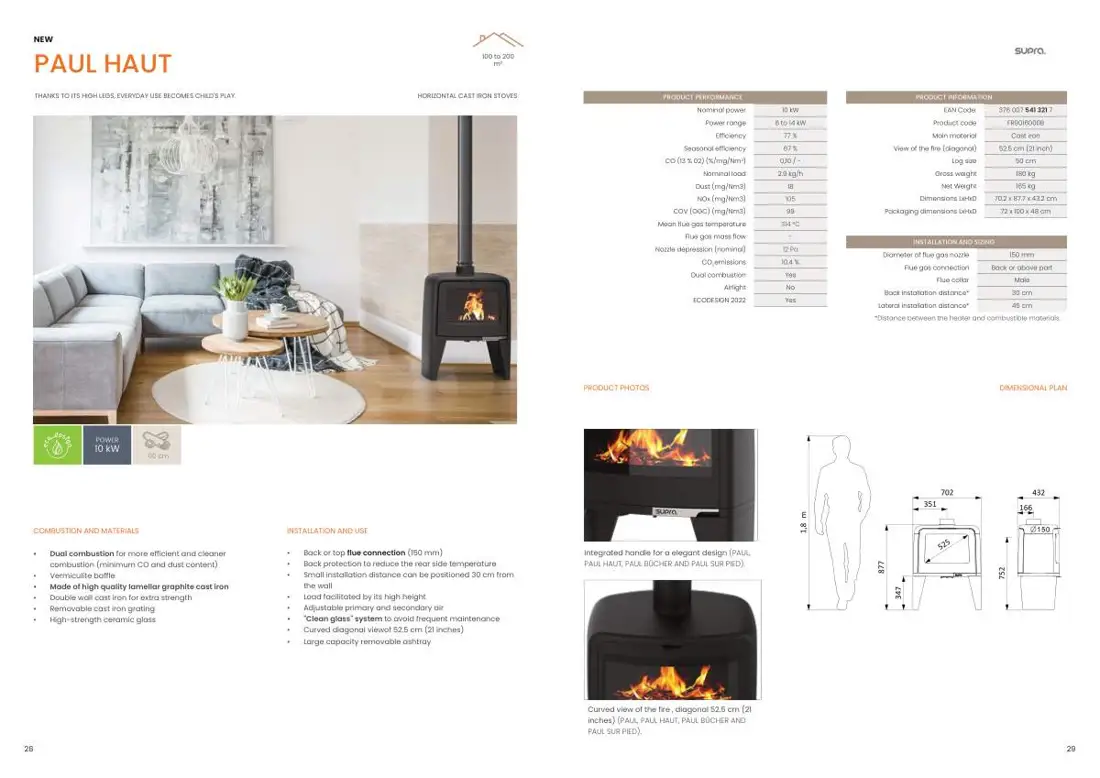

NEW
100 to 200
m² PAUL HAUT
THANKS TO ITS HIGH LEGS, EVERYDAY USE BECOMES CHILD'S PLAY. HORIZONTAL CAST IRON STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 10 kW EAN Code: 376 007 541 321 7
Power range 6 to 14 kW Product code FR9016000B
Efficiency 77 % Main material Cast iron
Seasonal efficiency 67 % View of the fire (diagonal) 52.5 cm (21 inch)
CO (13 % 02) (%/mg/Nm3) 0,10 / - Log size 50 cm
Nominal load 2.9 kg/h Gross weight 180 kg
Dust (mg/Nm3) 18 Net Weight 165 kg
NOx (mg/Nm3) 105 Dimensions LxHxD 70.2 x 87.7 x 43.2 cm
COV (OGC) (mg/Nm3) 99 Packaging dimensions LxHxD 72 x 100 x 48 cm
Mean flue gas temperature 314 °C
Flue gas mass flow -
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 10.4 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight No
Back installation distance* 30 cm
ECODESIGN 2022 Yes
Lateral installation distance* 45 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER
10 kW 50 cm
COMBUSTION AND MATERIALS INSTALLATION AND USE
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm) Integrated handle for a elegant design (PAUL,
combustion (minimum CO and dust content) • Back protection to reduce the rear side temperature PAUL HAUT, PAUL BÛCHER AND PAUL SUR PIED).
• Vermiculite baffle • Small installation distance can be positioned 30 cm from
• Made of high quality lamellar graphite cast iron the wall
• Double wall cast iron for extra strength • Load facilitated by its high height
• Removable cast iron grating • Adjustable primary and secondary air
• High-strength ceramic glass • "Clean glass" system to avoid frequent maintenance
• Curved diagonal viewof 52.5 cm (21 inches)
• Large capacity removable ashtray
Curved view of the fire , diagonal 52.5 cm (21
inches) (PAUL, PAUL HAUT, PAUL BÛCHER AND
PAUL SUR PIED).
