NEW
100 to 200

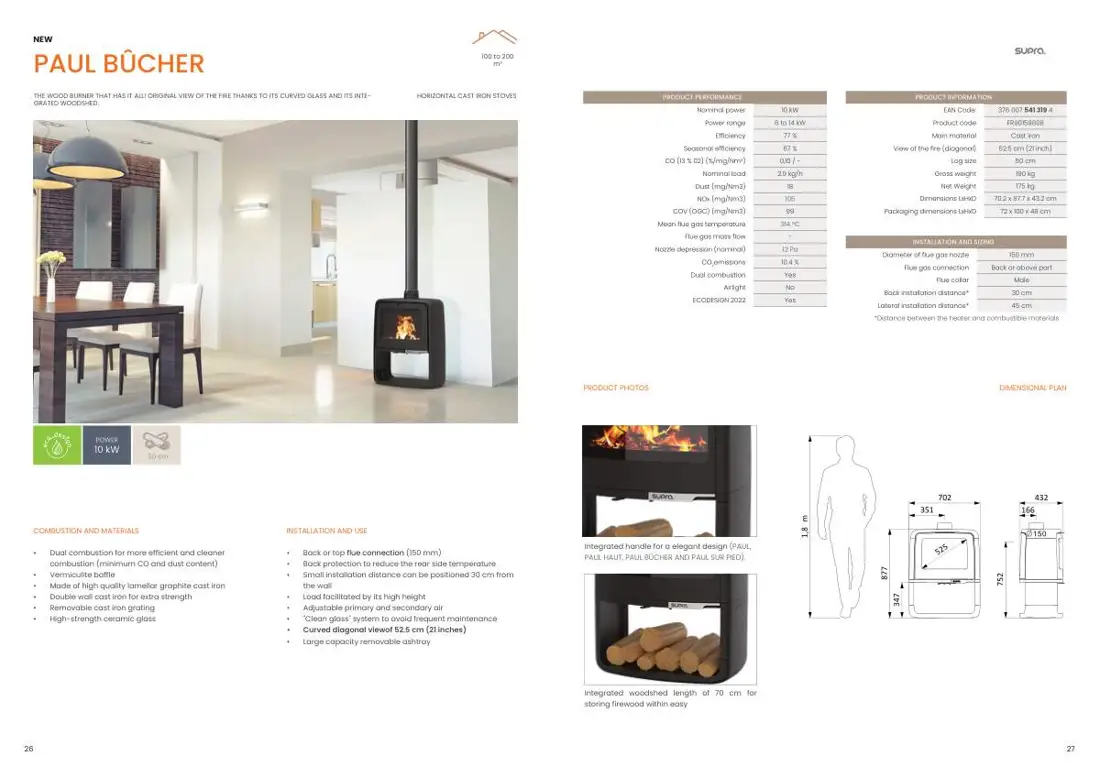

m² PAUL BÛCHER
THE WOOD BURNER THAT HAS IT ALL! ORIGINAL VIEW OF THE FIRE THANKS TO ITS CURVED GLASS AND ITS INTE HORIZONTAL CAST IRON STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
GRATED WOODSHED.
Nominal power 10 kW EAN Code: 376 007 541 319 4
Power range 6 to 14 kW Product code FR9015980B
Efficiency 77 % Main material Cast iron
Seasonal efficiency 67 % View of the fire (diagonal) 52.5 cm (21 inch)
CO (13 % 02) (%/mg/Nm3) 0,10 / - Log size 50 cm
Nominal load 2.9 kg/h Gross weight 190 kg
Dust (mg/Nm3) 18 Net Weight 175 kg
NOx (mg/Nm3) 105 Dimensions LxHxD 70.2 x 87.7 x 43.2 cm
COV (OGC) (mg/Nm3) 99 Packaging dimensions LxHxD 72 x 100 x 48 cm
Mean flue gas temperature 314 °C
Flue gas mass flow -
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 10.4 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight No
Back installation distance* 30 cm
ECODESIGN 2022 Yes
Lateral installation distance* 45 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER
10 kW 50 cm
COMBUSTION AND MATERIALS INSTALLATION AND USE
Integrated handle for a elegant design (PAUL,
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm) PAUL HAUT, PAUL BÛCHER AND PAUL SUR PIED).
combustion (minimum CO and dust content) • Back protection to reduce the rear side temperature
• Vermiculite baffle • Small installation distance can be positioned 30 cm from
• Made of high quality lamellar graphite cast iron the wall
• Double wall cast iron for extra strength • Load facilitated by its high height
• Removable cast iron grating • Adjustable primary and secondary air
• High-strength ceramic glass • "Clean glass" system to avoid frequent maintenance
• Curved diagonal viewof 52.5 cm (21 inches)
• Large capacity removable ashtray
Integrated woodshed length of 70 cm for
storing firewood within easy
