NEW
100 to 200

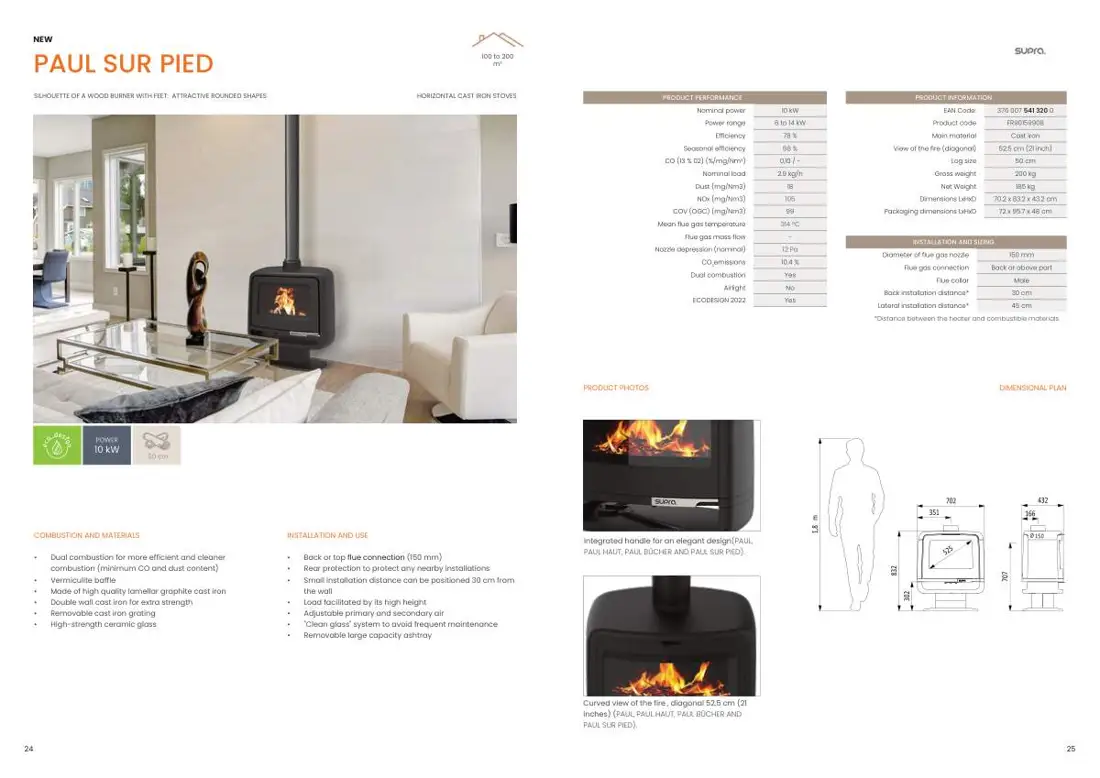

m² PAUL SUR PIED
SILHOUETTE OF A WOOD BURNER WITH FEET: ATTRACTIVE ROUNDED SHAPES HORIZONTAL CAST IRON STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 10 kW EAN Code: 376 007 541 320 0
Power range 6 to 14 kW Product code FR9015990B
Efficiency 78 % Main material Cast iron
Seasonal efficiency 68 % View of the fire (diagonal) 52.5 cm (21 inch)
CO (13 % 02) (%/mg/Nm3) 0,10 / - Log size 50 cm
Nominal load 2.9 kg/h Gross weight 200 kg
Dust (mg/Nm3) 18 Net Weight 185 kg
NOx (mg/Nm3) 105 Dimensions LxHxD 70.2 x 83.2 x 43.2 cm
COV (OGC) (mg/Nm3) 99 Packaging dimensions LxHxD 72 x 95.7 x 48 cm
Mean flue gas temperature 314 °C
Flue gas mass flow -
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 10.4 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight No
Back installation distance* 30 cm
ECODESIGN 2022 Yes
Lateral installation distance* 45 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER
10 kW 50 cm
COMBUSTION AND MATERIALS INSTALLATION AND USE Integrated handle for an elegant design(PAUL,
PAUL HAUT, PAUL BÛCHER AND PAUL SUR PIED).
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm)
combustion (minimum CO and dust content) • Rear protection to protect any nearby installations
• Vermiculite baffle • Small installation distance can be positioned 30 cm from
• Made of high quality lamellar graphite cast iron the wall
• Double wall cast iron for extra strength • Load facilitated by its high height
• Removable cast iron grating • Adjustable primary and secondary air
• High-strength ceramic glass • "Clean glass" system to avoid frequent maintenance
• Removable large capacity ashtray
Curved view of the fire , diagonal 52.5 cm (21
inches) (PAUL, PAUL HAUT, PAUL BÛCHER AND
PAUL SUR PIED).
