NEW
67 to 150
m² STINA

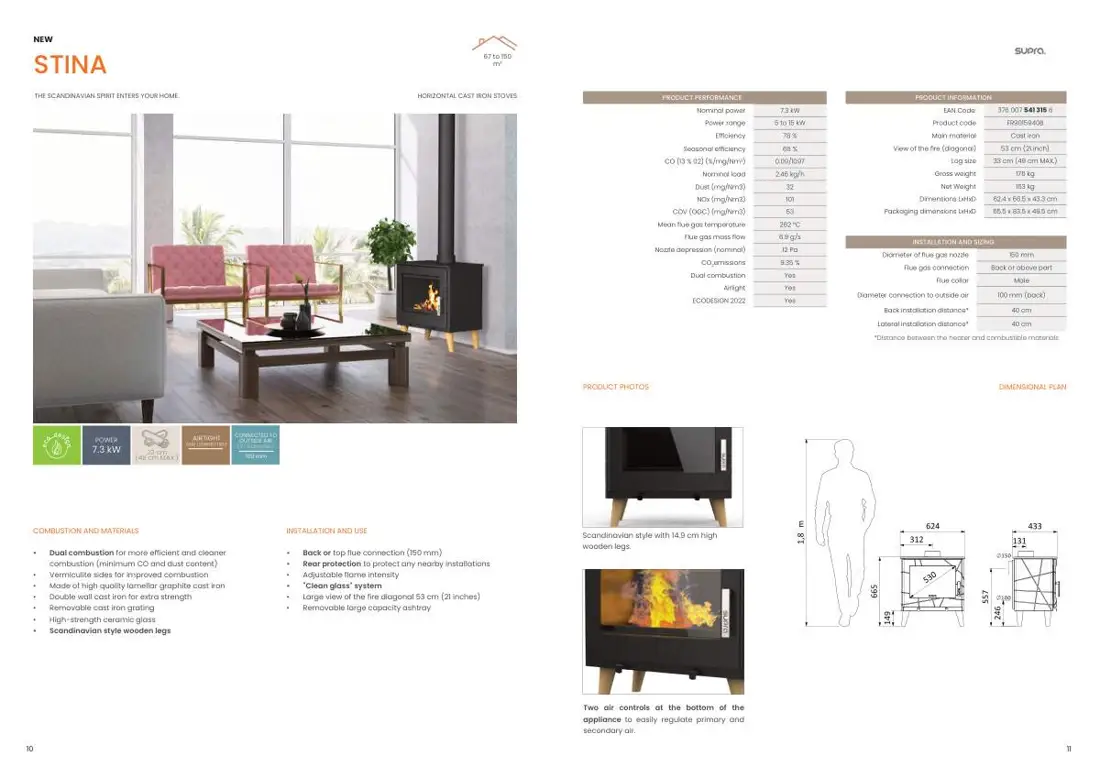

THE SCANDINAVIAN SPIRIT ENTERS YOUR HOME. HORIZONTAL CAST IRON STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 7.3 kW EAN Code: 376 007 541 315 6
Power range 5 to 15 kW Product code FR9015940B
Efficiency 78 % Main material Cast iron
Seasonal efficiency 68 % View of the fire (diagonal) 53 cm (21 inch)
CO (13 % 02) (%/mg/Nm3) 0.09/1097 Log size 33 cm (49 cm MAX.)
Nominal load 2.46 kg/h Gross weight 176 kg
Dust (mg/Nm3) 32 Net Weight 163 kg
NOx (mg/Nm3) 101 Dimensions LxHxD 62.4 x 66.5 x 43.3 cm
COV (OGC) (mg/Nm3) 53 Packaging dimensions LxHxD 65.5 x 83.5 x 49.5 cm
Mean flue gas temperature 262 °C
Flue gas mass flow 6.9 g/s INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa Diameter of flue gas nozzle 150 mm
CO2emissions 9.35 % Flue gas connection Back or above part
Dual combustion Yes Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back)
ECODESIGN 2022 Yes
Back installation distance* 40 cm
Lateral installation distance* 40 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE CONNECTEDOUTSIDE AIRTO
7.3 kW 33 cm (in diameter) (49 cm MAX.) 100 mm
COMBUSTION AND MATERIALS INSTALLATION AND USE Scandinavian style with 14.9 cm high
wooden legs.
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm)
combustion (minimum CO and dust content) • Rear protection to protect any nearby installations
• Vermiculite sides for improved combustion • Adjustable flame intensity
• Made of high quality lamellar graphite cast iron • "Clean glass" system
• Double wall cast iron for extra strength • Large view of the fire diagonal 53 cm (21 inches)
• Removable cast iron grating • Removable large capacity ashtray
• High-strength ceramic glass
• Scandinavian style wooden legs
Two air controls at the bottom of the
appliance to easily regulate primary and
secondary air.
