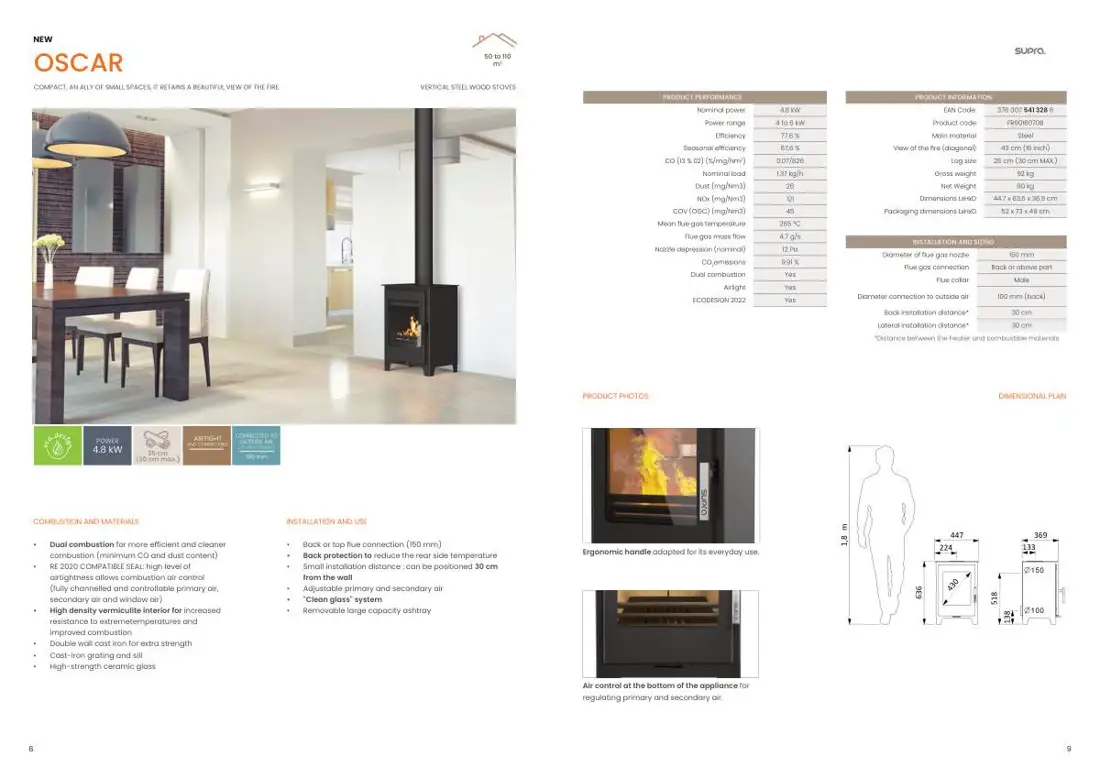

NEW
50 to 110
m²OSCAR
COMPACT, AN ALLY OF SMALL SPACES, IT RETAINS A BEAUTIFUL VIEW OF THE FIRE. VERTICAL STEEL WOOD STOVES
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 4.8 kW EAN Code: 376 007 541 328 6
Power range 4 to 6 kW Product code FR9016070B
Efficiency 77.6 % Main material Steel
Seasonal efficiency 67,6 % View of the fire (diagonal) 43 cm (16 inch)
CO (13 % 02) (%/mg/Nm3) 0.07/826 Log size 25 cm (30 cm MAX.)
Nominal load 1.37 kg/h Gross weight 92 kg
Dust (mg/Nm3) 26 Net Weight 80 kg
NOx (mg/Nm3) 121 Dimensions LxHxD 44.7 x 63.6 x 36.9 cm
COV (OGC) (mg/Nm3) 45 Packaging dimensions LxHxD 52 x 73 x 49 cm
Mean flue gas temperature 285 °C
Flue gas mass flow 4.7 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 9.91 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back) ECODESIGN 2022 Yes
Back installation distance* 30 cm
Lateral installation distance* 30 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE CONNECTEDOUTSIDE AIRTO
4.8 kW 25 cm (in 100diameter)mm (30 cm max.)
COMBUSTION AND MATERIALS INSTALLATION AND USE
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm)
Ergonomic handle adapted for its everyday use. combustion (minimum CO and dust content) • Back protection to reduce the rear side temperature
• RE 2020 COMPATIBLE SEAL: high level of • Small installation distance : can be positioned 30 cm
airtightness allows combustion air control from the wall
(fully channelled and controllable primary air, • Adjustable primary and secondary air
secondary air and window air) • "Clean glass" system
• High density vermiculite interior for increased • Removable large capacity ashtray
resistance to extremetemperatures and
improved combustion
• Double wall cast iron for extra strength
• Cast-iron grating and sill
• High-strength ceramic glass
Air control at the bottom of the appliance for
regulating primary and secondary air.
8 9
