85 to 165

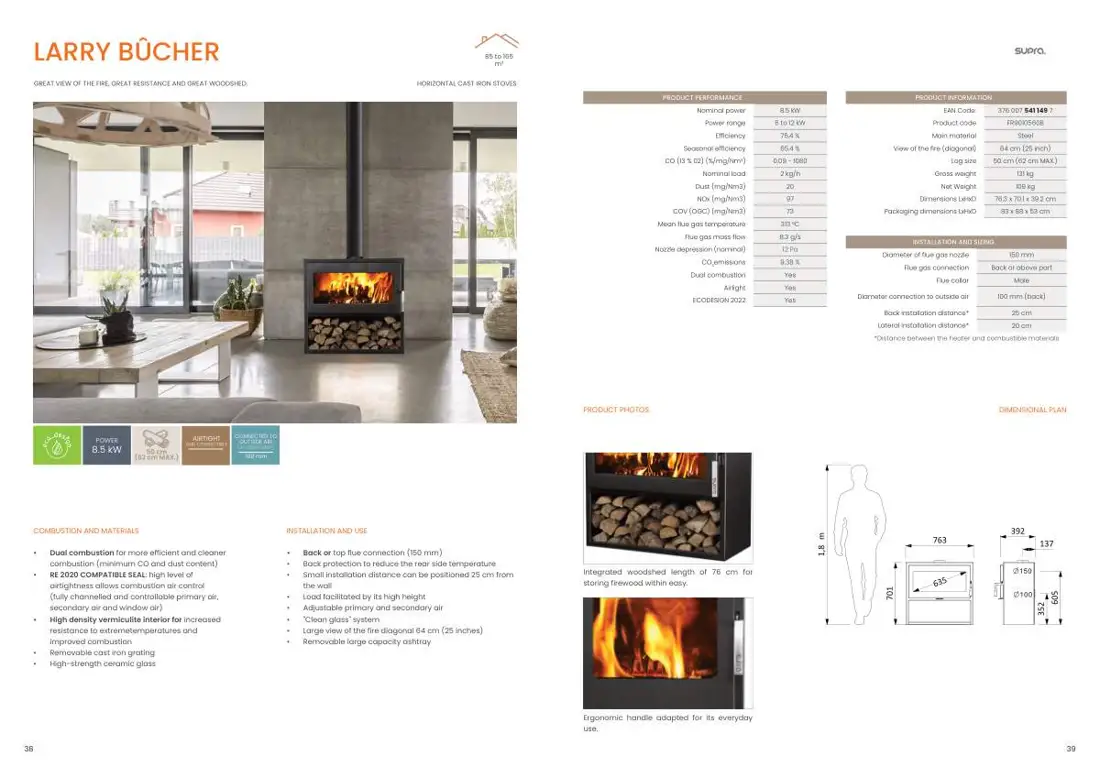

m² LARRY BÛCHER
GREAT VIEW OF THE FIRE, GREAT RESISTANCE AND GREAT WOODSHED. HORIZONTAL CAST IRON STOVES
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 8.5 kW EAN Code: 376 007 541 149 7
Power range 6 to 12 kW Product code FR9010560B
Efficiency 75.4 % Main material Steel
Seasonal efficiency 65.4 % View of the fire (diagonal) 64 cm (25 inch)
CO (13 % 02) (%/mg/Nm3) 0.09 - 1080 Log size 50 cm (62 cm MAX.)
Nominal load 2 kg/h Gross weight 131 kg
Dust (mg/Nm3) 20 Net Weight 109 kg
NOx (mg/Nm3) 97 Dimensions LxHxD 76.3 x 70.1 x 39.2 cm
COV (OGC) (mg/Nm3) 73 Packaging dimensions LxHxD 83 x 88 x 53 cm
Mean flue gas temperature 313 °C
Flue gas mass flow 8.3 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 9.38 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back) ECODESIGN 2022 Yes
Back installation distance* 25 cm
Lateral installation distance* 20 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE CONNECTEDOUTSIDE AIRTO
8.5 kW 50 cm (in diameter) (62 cm MAX.) 100 mm
COMBUSTION AND MATERIALS INSTALLATION AND USE
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm)
combustion (minimum CO and dust content) • Back protection to reduce the rear side temperature
• RE 2020 COMPATIBLE SEAL: high level of • Small installation distance can be positioned 25 cm from Integrated woodshed length of 76 cm for
storing firewood within easy. airtightness allows combustion air control the wall
(fully channelled and controllable primary air, • Load facilitated by its high height
secondary air and window air) • Adjustable primary and secondary air
• High density vermiculite interior for increased • "Clean glass" system
resistance to extremetemperatures and • Large view of the fire diagonal 64 cm (25 inches)
improved combustion • Removable large capacity ashtray
• Removable cast iron grating
• High-strength ceramic glass
Ergonomic handle adapted for its everyday
use.
