60 to 120

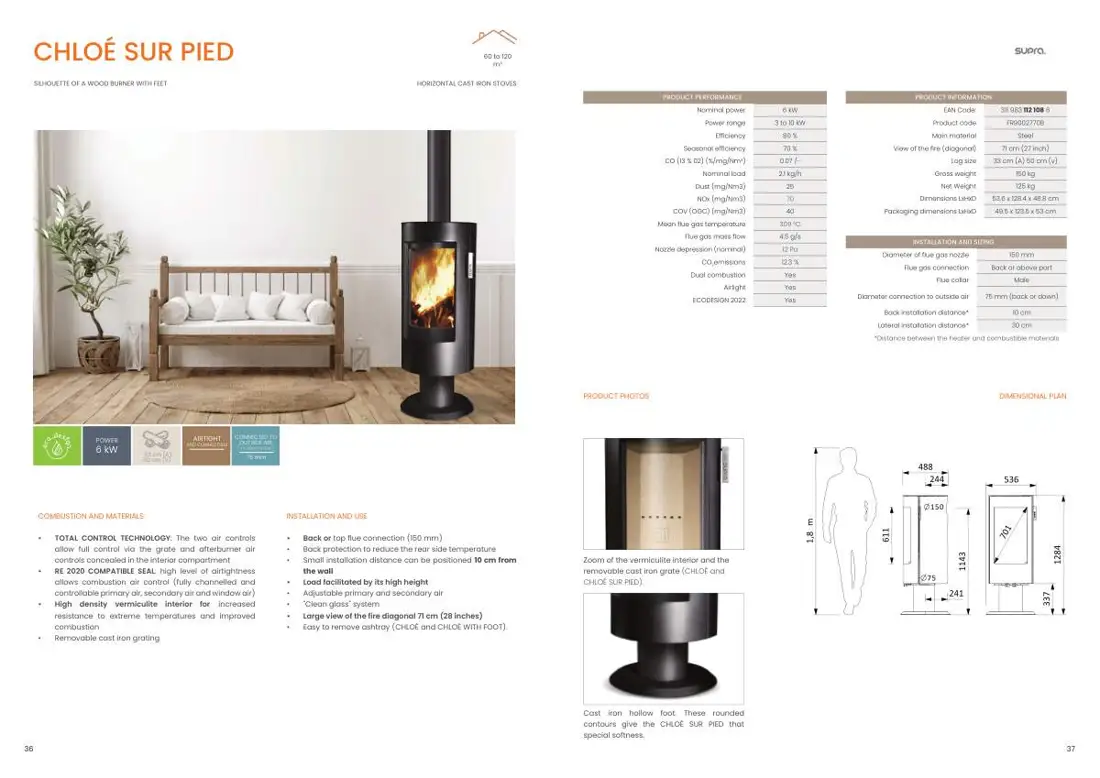

m² CHLOÉ SUR PIED
SILHOUETTE OF A WOOD BURNER WITH FEET HORIZONTAL CAST IRON STOVES
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 6 kW EAN Code: 311 983 112 108 6
Power range 3 to 10 kW Product code FR9002770B
Efficiency 80 % Main material Steel
Seasonal efficiency 70 % View of the fire (diagonal) 71 cm (27 inch)
CO (13 % 02) (%/mg/Nm3) 0.07 /- Log size 33 cm (A) 50 cm (v)
Nominal load 2.1 kg/h Gross weight 150 kg
Dust (mg/Nm3) 25 Net Weight 125 kg
NOx (mg/Nm3) 70 Dimensions LxHxD 53.6 x 128.4 x 48.8 cm
COV (OGC) (mg/Nm3) 40 Packaging dimensions LxHxD 49.5 x 123.5 x 53 cm
Mean flue gas temperature 309 °C
Flue gas mass flow 4.5 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 12.3 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 75 mm (back or down) ECODESIGN 2022 Yes
Back installation distance* 10 cm
Lateral installation distance* 30 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE CONNECTEDOUTSIDE AIRTO
6 kW 33 cm (A) (in diameter) 50 cm (V) 75 mm
COMBUSTION AND MATERIALS INSTALLATION AND USE
• TOTAL CONTROL TECHNOLOGY: The two air controls • Back or top flue connection (150 mm)
allow full control via the grate and afterburner air • Back protection to reduce the rear side temperature
controls concealed in the interior compartment • Small installation distance can be positioned 10 cm from Zoom of the vermiculite interior and the
• RE 2020 COMPATIBLE SEAL: high level of airtightness the wall removable cast iron grate (CHLOÉ and
allows combustion air control (fully channelled and • Load facilitated by its high height CHLOÉ SUR PIED).
controllable primary air, secondary air and window air) • Adjustable primary and secondary air
• High density vermiculite interior for increased • "Clean glass" system
resistance to extreme temperatures and improved • Large view of the fire diagonal 71 cm (28 inches)
combustion • Easy to remove ashtray (CHLOÉ and CHLOÉ WITH FOOT).
• Removable cast iron grating
Cast iron hollow foot. These rounded
contours give the CHLOÉ SUR PIED that
special softness.
