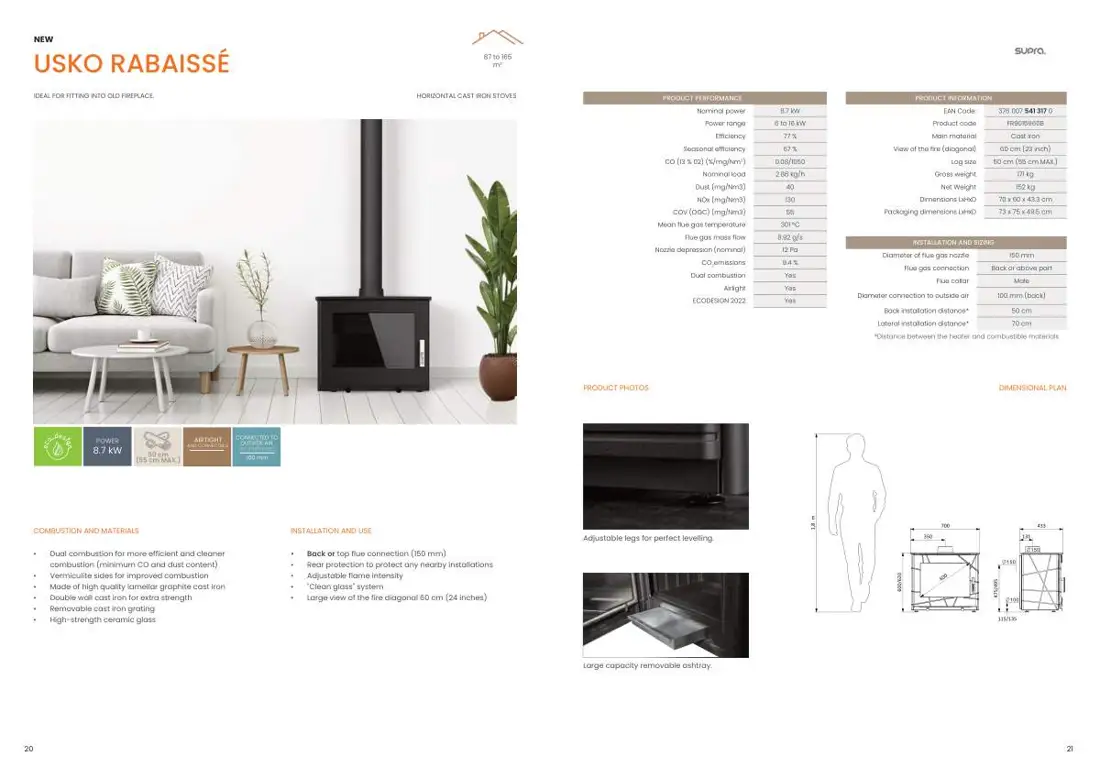

NEW
87 to 165
m² USKO RABAISSÉ
IDEAL FOR FITTING INTO OLD FIREPLACE. HORIZONTAL CAST IRON STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 8.7 kW EAN Code: 376 007 541 317 0
Power range 6 to 16 kW Product code FR9015960B
Efficiency 77 % Main material Cast iron
Seasonal efficiency 67 % View of the fire (diagonal) 60 cm (23 inch)
CO (13 % 02) (%/mg/Nm3) 0.08/1050 Log size 50 cm (55 cm MAX.)
Nominal load 2.86 kg/h Gross weight 171 kg
Dust (mg/Nm3) 40 Net Weight 152 kg
NOx (mg/Nm3) 130 Dimensions LxHxD 70 x 60 x 43.3 cm
COV (OGC) (mg/Nm3) 55 Packaging dimensions LxHxD 73 x 75 x 49.5 cm
Mean flue gas temperature 301 °C
Flue gas mass flow 8.92 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 9.4 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back) ECODESIGN 2022 Yes
Back installation distance* 50 cm
Lateral installation distance* 70 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
CONNECTED TO AIRTIGHT POWER OUTSIDE AIR AND CONNECTIBLE
8.7 kW 50 cm (in 100diameter)mm (55 cm MAX.)
COMBUSTION AND MATERIALS INSTALLATION AND USE
Adjustable legs for perfect levelling.
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm)
combustion (minimum CO and dust content) • Rear protection to protect any nearby installations
• Vermiculite sides for improved combustion • Adjustable flame intensity
• Made of high quality lamellar graphite cast iron • "Clean glass" system
• Double wall cast iron for extra strength • Large view of the fire diagonal 60 cm (24 inches)
• Removable cast iron grating
• High-strength ceramic glass
Large capacity removable ashtray.
