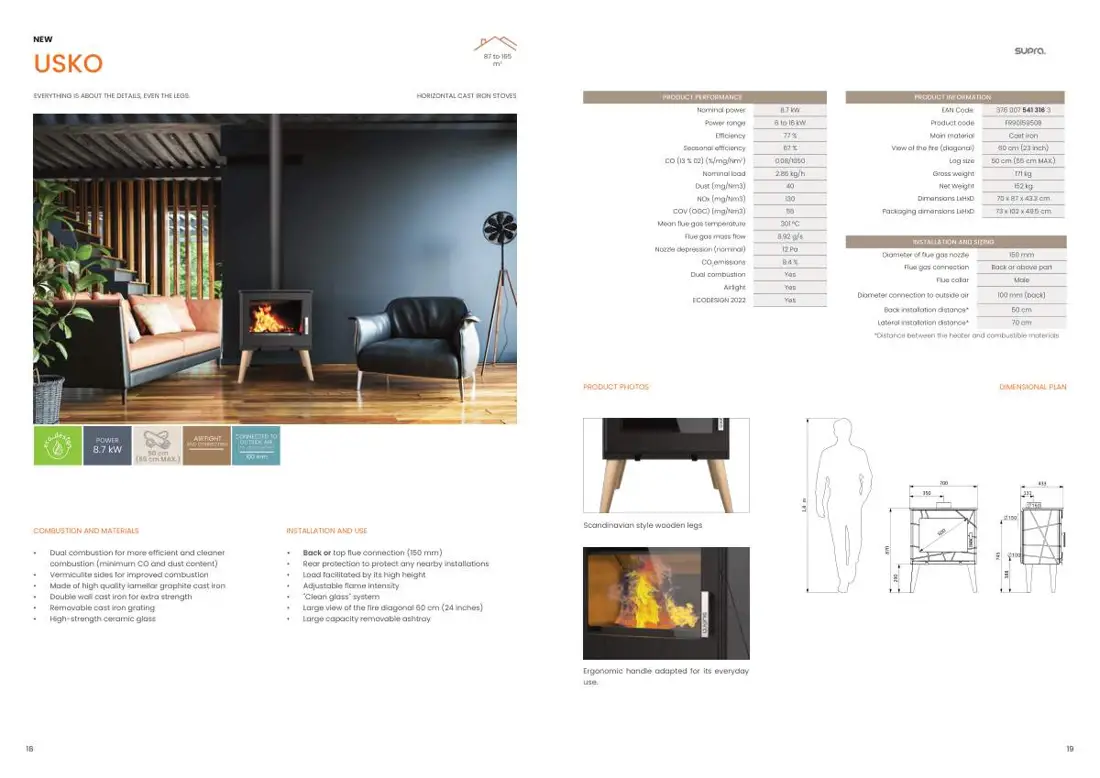

NEW
87 to 165
m²USKO
EVERYTHING IS ABOUT THE DETAILS, EVEN THE LEGS. HORIZONTAL CAST IRON STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 8.7 kW EAN Code: 376 007 541 316 3
Power range 6 to 16 kW Product code FR9015950B
Efficiency 77 % Main material Cast iron
Seasonal efficiency 67 % View of the fire (diagonal) 60 cm (23 inch)
CO (13 % 02) (%/mg/Nm3) 0.08/1050 Log size 50 cm (55 cm MAX.)
Nominal load 2.86 kg/h Gross weight 171 kg
Dust (mg/Nm3) 40 Net Weight 152 kg
NOx (mg/Nm3) 130 Dimensions LxHxD 70 x 87 x 43.3 cm
COV (OGC) (mg/Nm3) 55 Packaging dimensions LxHxD 73 x 102 x 49.5 cm
Mean flue gas temperature 301 °C
Flue gas mass flow 8.92 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 9.4 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back) ECODESIGN 2022 Yes
Back installation distance* 50 cm
Lateral installation distance* 70 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER ANDAIRTIGHTCONNECTIBLE CONNECTEDOUTSIDE AIRTO
8.7 kW 50 cm (in 100diameter)mm (55 cm MAX.)
Scandinavian style wooden legs COMBUSTION AND MATERIALS INSTALLATION AND USE
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm)
combustion (minimum CO and dust content) • Rear protection to protect any nearby installations
• Vermiculite sides for improved combustion • Load facilitated by its high height
• Made of high quality lamellar graphite cast iron • Adjustable flame intensity
• Double wall cast iron for extra strength • "Clean glass" system
• Removable cast iron grating • Large view of the fire diagonal 60 cm (24 inches)
• High-strength ceramic glass • Large capacity removable ashtray
Ergonomic handle adapted for its everyday
use.
