Kaminski vložekTURBO 634

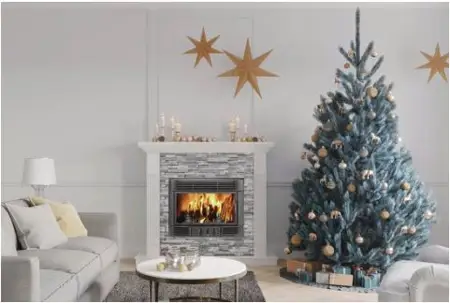

TURBO 634 je kaminski vložek. Vgradna izvedba za vključitev v kaminsko oblogo.
Prikaz modela oziroma njegove družine iz kataloga. Izbrano oblogo in izvedbo preverite na pripadajočih straneh.
Podatki in možnosti izvedbe
Podrobneje o izdelku.
Spodaj so pripadajoče strani s fotografijami, opisi, tehničnimi podatki in možnostmi izvedbe. Skupne tabele lahko vključujejo več modelov; podatke preverite v stolpcu za TURBO 634.
Stran 30 · odprite za branje ↗
Stran 31 · odprite za branje ↗
Stran 32 · odprite za branje ↗
Stran 33 · odprite za branje ↗Izluščeni opisi in podatki v jeziku kataloga
angleščina
Stran 30
60 to 120
m² TURBO 634
WITH ITS TRADITIONAL APPEARANCE, THIS INSERT IS PERFECT FOR A RUSTIC AND WARM INTERIOR. INSERTS
PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 6 kW EAN Code: 311 983 112 021 8
Power range 3 to 10 kW Product code FR9005550B
Efficiency 78 % Main material Steel
Seasonal efficiency 68 % View of the fire (diagonal) 58 cm (26 inch)
CO (13 % 02) (%/mg/Nm3) 0.103 - 1282 Log size 45 cm (50 cm MAX.)
Nominal load 1.8 kg/h Gross weight 97 kg
Dust (mg/Nm3) 29 Net Weight 78 kg
NOx (mg/Nm3) 117 Dimensions LxHxD 63 x 53 x 41.5 cm
COV (OGC) (mg/Nm3) 89 Packaging dimensions LxHxD 60 x 76 x 80 cm
Mean flue gas temperature 242 °C
Flue gas mass flow 7.5 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle -
CO2emissions 7.16 % Flue gas connection -
Dual combustion No
Flue collar -
Airlight No
Diameter connection to outside air - ECODESIGN 2022 Yes
Back installation distance* 0 cm
Lateral installation distance* 0 cm
*Distance between the heater and combustible materials
See options available at the end of the catalogue
PRODUCT PHOTOS DIMENSIONAL PLAN
POWER
6 kW 45 cm (50 cm MAX.)
630 650
INSTALLATION AND USE COMBUSTION AND MATERIALS
• Single air control to regulate combustion
• 2 turbines en standard to distribute the heat in 500 • Easy access and large capacity ashtray for spaced ash 530 the room removal • High-performance cast iron heating element 500530 • Front opening door • Cast-iron grating and sill • "Clean glass" system Rustic style hearth plate interior to add • Heavy-duty glass ceramic door character to your fireplace.
• Can be installed without a flue duct in an open fireplace.
415
The hot flue gases pass between the heat exchanger tubes
and are sent directly into the exhaust duct of the old fireplace;
during installation there is no connection work
to be carried out on the old flue duct.
The manual ventilation is switched on by
means of a switch on the front of the appliance.
58 59Stran 31
TABLE OF COMPARISONS
WOOD BURNING STOVES RANGE
JACCO ANAYA CHLOÉ SUR LARRY LARRY SUR ADAM GEORGES USKO RABAISSÉ JACCO PIEDS CHLOÉ P.26-27 PAULSUR PIED PAUL BÛCHER PAUL HAUT OSCAR P.8-9 STINA P.10-11 ADAM P.12-13 USKO P.18-19 BÛCHER PIED P.32-33 TRI-VISON PAUL P.36-37 PIED P.28-29 BÛCHER BÛCHER P.16-17 P.20-21 BOIS P.24-25 P.38-39 P.40-41 P.42-43 P.22-23 P.30-31 P.34-35
PRODUCT PERFORMANCE PRODUCT PERFORMANCE
NOMINAL POWER 4.8 KW 7.3 KW 7.3 KW 7.3 KW 6.7 KW 8.7 KW 8.7 KW 4.8 KW 4.8 KW NOMINAL POWER 6 kW 6 kW 8.5 kW 8.5 kW 9.1 kW 10 kW 10 kW 10 kW 10 kW
4 TO FROM 5 TO FROM 5 TO FROM 5 TO POWER RANGE FROM
6 kW 15 kW 15 kW 15 kW 5 TO 15 kW FROM16 kW6 TO FROM16 kW6 TO FROM6 kW4 TO FROM6 kW4 TO POWER RANGE 3 to 10 kW 3 to 10 kW FROM10 kW6 TO FROM10 kW6 TO FROM10 kW6 TO FROM14 kW6 TO FROM14 kW6 TO FROM14 kW6 TO FROM14 kW6 TO
NOMINAL OUTPUT 77.6 % 78 % 78 % 78 % 80.2 % 77 % 77 % 77.6 % 77.6 % EFFICIENCY 80 % 80 % 75.4 % 75.4 % 80 % 77 % 77 % 77 % 77 %
SEASONAL EFFICIENCY 66.6 % 68 % 68 % 68 % 7.20 % 67 % 67 % 66.6 % 66.6 % SEASONAL EFFICIENCY 70 % 70 % 65.4 % 65.4 % 70 % 66 % 66 % 66 % 66 %
CO (13% 02) (%/mg/Nm3) 0.07 - 826 0.09/1097 0.09/1097 0.09/1097 0.12 - 1500 0.08 - 1050 0.08 - 1050 0.07 - 826 0.07 - 826 CO (13% 02) (%/mg/Nm3) 0,07 / - 0,07 / - 0.09 - 1080 0.09 - 1080 0.05 - 619 0,10 / - 0,10 / - 0,10 / - 0,10 / -
NOMINAL LOAD 1.37 kg/h 2.46 kg/h 2.46 kg/h 2.46 kg/h 2.46 kg/h 2.86 kg/h 2.86 kg/h 1.37 kg/h 1.37 kg/h NOMINAL LOAD 2.1 kg/h 2.1 kg/h 2 kg/h 2 kg/h 2,5 kg/h 2.9 kg/h 2.9 kg/h 2.9 kg/h 2.9 kg/h
DUST (mg/Nm3) 26 32 32 32 39.8 40 40 26 26 DUST (mg/Nm3) 25 25 20 20 23 18 18 18 18
NOX (mg/Nm3) 121 101 101 101 85.1 130 130 121 121 NOX (mg/Nm3) 70 70 97 97 100 105 105 105 105
COV (OGC) (mg/Nm3) 45 53 53 53 86.5 55 55 45 45 COV (OGC) (mg/Nm3) 40 40 73 73 36 99 99 99 99
Mean flue gas 285 °C 262 °C 262 °C 262 °C 249.7 °C 301 °C 301 °C 285 °C 285 °C Mean flue gas temperature 309 °C 309 °C 313 °C 313 °C 308 °C 314 °C 314 °C 314 °C 314 °C temperature
FLUE GAS MASS FLOW 4.7 g/s 6.9 g/s 6.9 g/s 6.9 g/s 6.2 g/s 8.92 g/s 8.92 g/s 4.7 g/s 4.7 g/s FLUE GAS MASS FLOW 4.5 g/s 4.5 g/s 8.3 g/s 8.3 g/s 7,2 g/s - - - -
NOZZLE DEPRESSION 12 Pa 12 Pa 12 Pa 12 Pa 12 Pa 12 Pa 12 Pa 12 Pa 12 Pa NOZZLE DEPRESSION (NOMINAL) 12 Pa 12 Pa 12 Pa 12 Pa 12 PA 12 Pa 12 Pa 12 Pa 12 Pa (NOMINAL)
CO2 EMISSIONS 9.91 % 9.35 % 9.35 % 9.35 % 9.3 % 9.4 % 9.4 % 9.91 % 9.91 % CO2 EMISSIONS 12.3 % 12.3 % 9.38 % 9.38 % 12,08 % 10.4 % 10.4 % 10.4 % 10.4 %
DUAL COMBUSTION YES YES YES YES YES YES YES YES YES DUAL COMBUSTION YES YES YES YES YES YES YES YES YES
AIRLIGHT YES YES YES YES NO YES YES YES YES AIRLIGHT YES YES YES YES YES NO NO NO NO
ECODESIGN 2022 YES YES YES YES YES YES YES YES YES ECODESIGN 2022 YES YES YES YES YES YES YES YES YES
PRODUCT INFORMATION PRODUCT INFORMATION
EAN CODE 3760075413286 3760075413156 3760075413132 3760075413149 3760075413163 3760075413163 3760075413170 3760075411480 3760075413231
EAN CODE 3119831121079 3119831121086 3760075411497 3760075413224 3760075411527 3760075413187 3760075413200 3760075413194 3760075413217
PRODUCT CODE FR9016070B FR9015940B FR9015920B FR9015930B FR9015950B FR9015950B FR9015960B FR9010550B FR9016010B
PRODUCT CODE FR9002710B FR9002770B FR9010560B FR9016010B FR9010580B FR9015970B FR9015990B FR9015980B FR9016000B MAIN MATERIAL STEEL CAST IRON CAST IRON CAST IRON CAST IRON CAST IRON CAST IRON STEEL STEEL
VIEW OF THE FIRE 43 cm (16 53 cm 53 cm 53 cm 53 CM (21 60 cm (24 60 cm (24 43 cm (16 43.2 cm (16 MAIN MATERIAL STEEL STEEL STEEL STEEL STEEL CAST IRON CAST IRON CAST IRON CAST IRON
(DIAGONAL) inch) (21 INCH) (21 INCH) (21 INCH) INCH) INCH) INCH) INCH) INCH) VIEW OF THE FIRE 71 cm (27 71 cm (27 64 cm (25 64 cm (25 56 cm (22 52.5 cm (21 52.5 cm (21 52.5 cm (21 52.5 cm (21
25 CM 33 CM 33 CM 33 CM 33 CM 50 CM 25 CM 25 CM (DIAGONAL) INCH) INCH) INCH) INCH) INCH) INCH) INCH) INCH) INCH) 50 CM MAXIMUM LOG SIZE (33.3 CM (49 CM (49 CM (49 CM (49 CM (55 CM (33 CM (33 CM 33 cm (A) 33 cm (A) 50 CM (62 50 CM (62 33 cm (A) (55 CM MAX.) MAX.) MAX.) MAX.) MAX.) MAX.) MAX.) MAX.) MAX.) MAXIMUM LOG SIZE 50 CM 50 CM 50 CM 50 CM 50 cm (v) 50 cm (v) CM MAX.) CM MAX.) 50 (V)
GROSS WEIGHT 92 KG 176 kg 181 kg 200 kg 155 kg 171 kg 171 kg 110 kg 105 kg GROSS WEIGHT 155 kg 150 kg 131 kg 155 KG 145 kg 175 KG 200 KG 190 KG 180 KG
NET WEIGHT 80 KG 163 kg 168 kg 182 kg 140 kg 155 kg 155 kg 95 kg 90 kg NET WEIGHT 135 kg 125 kg 109 kg 145 KG 123 kg 160 KG 185 KG 175 KG 165 KG
44.7 X 63.6 X 62.4 x 66.5 62.4 x 59.5 x 62.4 x 91.5 x 62.5 x 71.1 x 70 x 87 x 70 x 60 x 43.3 41.7 x 93.6 x 42 X 74.8 X 53.6 X 128.4 53.6 X 128.4 76.3 X 70.1 X 76.3 X 69.9 X 50.8 x 105.4 x 70.2 X 73.2 X 70.2 X 83.2 X 70.2 X 87.7 X 70.2 X 83.2 X DIMENSIONS LXHXD 36.9 CM x 43.3 cm 43.3 cm 43.3 cm 43.3 cm 43.3 cm cm 49 cm 37.6 CM DIMENSIONS LxHxD X 48.8 CM X 48.8 CM 39.2 CM 39.1 CM 43.8 cm 43.2 CM 43.2 CM 43.2 CM 43.2 CM
PACKAGING DIMENSIONS 52 x 79 x 49 65.5 x 83.5 x 65.5 x 73 x 65.5 x 106 x 65 x 90 x 73 x 100 x 73 x 75 x 49.5 49.5 X 123.5 51 X 90 X PACKAGING DIMENSIONS 80 x 150 x 60 80 x 150 x 60 83 x 88 x 53 83 x 88 x 53 56 x 123.5 x 72 X 85.7 X 72 X 95.7 X 72 X 100 X 72 X 100 X 48
LXHXD cm 49.5 cm 49.5 cm 49.5 cm 49.5 cm 49.5 cm cm X 53 CM 46.5 CM LxHxD cm cm cm cm 56 cm 48 CM 48 CM 48 CM CM
INSTALLATION AND SIZING INSTALLATION AND SIZING
DIAMETER OF FLUE GAS NOZZLES 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm DIAMETER OF FLUE GAS
NOZZLES 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm 150 mm
CONNECTION OF THE FLUE GAS BACK OR BACK OR BACK OR BACK OR BACK OR BACK OR BACK OR BACK OR BACK OR ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART CONNECTION OF THE FLUE GAS BACK OR BACK OR BACK OR BACK OR BACK OR BACK OR BACK OR BACK OR BACK OR ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART ABOVE PART
FLUE COLLAR MALE MALE MALE MALE MALE MALE MALE MALE MALE
FLUE COLLAR MALE MALE MALE MALE MALE MALE MALE MALE MALE
DIAMETER CONNECTION TO 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm CONNECTION mm 100 mm TO 100 mm 100 mm 100 mm 100 OUTSIDE AIR (BACK) (BACK) (BACK) (BACK) (BACK) (BACK) (BACK) (BACK) (BACK) DIAMETER - - - - OUTSIDE AIR (BACK) (BACK) (BACK) (BACK) (BACK)
BACK INSTALLATION DISTANCE* 30 cm 40 cm 40 cm 40 cm 50 cm 50 cm 50 cm 30 cm 30 cm BACK INSTALLATION DISTANCE* 10 cm 10 cm 25 cm 25 mm 15 mm 30 mm 30 mm 30 mm 30 mm
LATERAL INSTALLATION LATERAL INSTALLATION
DISTANCE* 30 cm 40 cm 40 cm 40 cm 60 cm 70 cm 60 cm 30 cm 30 cm DISTANCE* 30 cm 30 cm 20 cm 20 cm 70 cm 45 cm 45 cm 45 cm 45 cm
*DISTANCE BETWEEN THE HEATER AND COMBUSTIBLE MATERIALS *DISTANCE BETWEEN THE HEATER AND COMBUSTIBLE MATERIALSStran 32
TABLE OF COMPARISONS
INSERTS RANGE PELLETS BURNING STOVES RANGE
NÉO 55 E P.45-46 NÉO 67 P.47-48 NÉO 76 P.49-50 NEO 76 16/9ÈME
CALLIOPÉ 8 P.51-52 NÉO 100 E P.53-54 TERTIO 76 P.55-56 TURBO 634 P.57-58
BLACK / GRAY / WHITE P.44-45
PRODUCT PERFORMANCE
PRODUCT PERFORMANCE NOMINAL POWER 6 kW 8 kW 10.6 kW 10 kW 9 kW 9.5 kW 6 kW
NOMINAL POWER 8 kW POWER RANGE FROM 3 TO 10 kW FROM 5 TO 14 kW FROM 7 TO 14 kW FROM 7 TO 14 kW FROM 7 TO 14 kW FROM 7 TO 14 kW FROM 3 TO 10 kW
POWER RANGE 2.8 to 8 kW NOMINAL OUTPUT 85 % 85 % 77 % 78 % 77 % 7 5% 78 %
DEPOSIT CAPACITY 20 kg SEASONAL EFFICIENCY 75 % 75 % 67 % 68 % 67 % 65 % 6 8%
CORDLESS CUTTING TIME FROM 11 TO 32 h
CO (13% 02) (%/mg/ 0,09 / - 0.09 - 1170 0,09 / - 0,09 / - 0.08 - 1040 0.104 - 1300 0.103 - 1282 NOMINAL OUTPUT 91 % - 92 % Nm3)
SEASONAL EFFICIENCY 82 % NOMINAL LOAD 2.1 kg/h 2.25 kg/h 2.9 kg/h 2.9 kg/h 2.8 kg/h 2.9 kg/h 1.8 kg/h
HEATING SURFACE FROM 80 TO 160 m2 DUST (mg/Nm3) 50 50 36.5 40 30 20 29
CONSUMPTION PER HOUR 0.63- 1.83 KG/H NOX (mg/Nm3) 103,5 110 53.9 53.9 125 102 117
CO (13% 02) (%/mg/Nm3) 0.0084 - 207 COV (OGC) (mg/ 48,45 120 55.4 52 70 92 89 Nm3)
DUST (mg/Nm3) 15 Mean flue gas 220 °C 174 °C 326 °C 300 °C 256 °C 405 °C 242 °C temperature
NOX (mg/Nm3) 66
FLUE GAS MASS FLOW 4.7 g/s 6.8 g/s 8.75 g/s 8 g/s 8.9 g/s 9 g/s 7.5 g/s
COV (OGC) (mg/Nm3) 9
NOZZLE DEPRESSION 12 Pa 12 Pa 12 Pa 12 Pa 12 Pa 12 Pa 12 Pa Mean flue gas temperature 127 °C (NOMINAL)
CO2 EMISSIONS 11.60 % 9.10 % 10.43 % 11 % 8.20 % 9.61 % 7.16 % FLUE GAS MASS FLOW 6.4 g/s
DUAL COMBUSTION YES YES YES YES YES YES NO NOZZLE DEPRESSION (NOMINAL) 12 Pa
AIRLIGHT YES YES YES YES YES NO NO CO2 EMISSIONS 9.38 %
ECODESIGN 2022 YES YES YES YES YES YES NO AIRLIGHT YES
ECODESIGN 2022 YES PRODUCT INFORMATION
PRODUCT INFORMATION EAN CODE 376 007 541 231 9 311 983 112 039 3 311 983 112 040 9 311 983 112 044 7 376 007 541 164 0 311 983 111 202 2 311 983 112 021 8
EAN CODE / PRODUCT CODE (BLACK) 376 007 541 233 3 / FR9011340B PRODUCT CODE FR9011320B FR9006720B FR9006770B FR9006780B FR9010720B FR9008320B FR9005550B
EAN CODE / PRODUCT CODE (GRAY) 376 007 541 234 0 / FR9011350B MAIN MATERIAL STEEL STEEL STEEL STEEL STEEL STEEL STEEL
VIEW OF THE FIRE 45 cm 56 cm
EAN CODE / PRODUCT CODE (WHITE) 376 007 541 235 7 / FR9011360B (DIAGONAL) (18 INCH) (22 INCH) 70 cm (27 INCH) 65 cm (22 INCH) 83 cm (32 INCH) 71 cm (28 INCH) -
MAIN MATERIAL STEEL
MAXIMUM LOG SIZE 43 cm 55 cm 60 cm 60 cm 80 cm 60 cm 50 cm
SILENT MODE (CONVECTION) YES
GROSS WEIGHT 99 kg 110 kg 130 kg 118 kg 172 kg 142 kg 97 kg
GROSS WEIGHT 110 kg NET WEIGHT 88 kg 99 kg 118 kg 107 kg 152 kg 110 kg 78 kg
NET WEIGHT 95 kg 59,8 x 55,8 x 40,5 70,8 x 59,5 x 48,3 79,8 x 59,5 x 48,4 103,9 x 59,5 x 48,2 76,1 x 61,9 x 51,8 DIMENSIONS LxHxD 79,8 x 70 x 48,4 CM 65 x 53 x 41,5 CM CM CM CM CM CM
DIMENSIONS LxHxD 47.2 x 103.5 x 49.3 cm
PACKAGING 80 X 75.2 X 60 CM 76 X 76 X 57 CM 86 x 87.5 x 57 cm 85 X 75 X 57 CM 112 X 57 X 75 CM 86 X 84 X 76 CM 60 X 76 X 80 CM DIMENSIONS LxHxD PACKAGING DIMENSIONS LxHxD 60 x 135 x 80 cm
INSTALLATION AND SIZING
INSTALLATION AND SIZING DIAMETER OF FLUE GAS 150 mm 150 mm 150 mm 150 mm 180 mm 200 mm - DIAMETER OF FLUE GAS NOZZLES 80 mm NOZZLES
CONNECTION OF THE FLUE UP UP UP UP UP UP - CONNECTION OF THE FLUE GAS BACK GAS
FLUE COLLAR MALE MALE MALE MALE MALE MALE - FLUE COLLAR MALE
75 mm 75 mm 75 mm 75 mm 75 mm DIAMETER CONNECTION TO OUTSIDE AIR 50 mm DIAMETER CONNECTION TO OUTSIDE AIR (BACK OR ABOVE (BACK OR ABOVE (BACK OR ABOVE (BACK OR ABOVE (BACK OR ABOVE - - PART) PART) PART) PART) PART)
BACK INSTALLATION DISTANCE* 30 cm
BACK INSTALLATION
DISTANCE* 4 cm 5 cm 5 cm 5 cm 6 cm 0 cm 0 cm
LATERAL INSTALLATION DISTANCE* 30 cm
LATERAL INSTALLATION 4 cm 5 cm 5 cm 5 cm 4 cm 25 cm 0 cm *DISTANCE BETWEEN THE HEATER AND COMBUSTIBLE MATERIALS DISTANCE*
*DISTANCE BETWEEN THE HEATER AND COMBUSTIBLE MATERIALS
62 63Stran 33
ACCESSORIES
INSERTS
NÉO 55 E NÉO 67 NÉO 76 NEO 76 16/9 ÈME NÉO 100 E TERTIO 76 TURBO 634
P.45-46 P.47-48 P.49-50 P.51-52 P.53-54 P.55-56 P.57-58
ACCESSORIES
TURBINE OPTION (1) FR9008530B FR9005880B FR9005880B FR9005880B FR9005830B FR9005870B -
4 NOZZLES OPTION FR9005680B FR9005680B FR9005680B FR9005680B FR9005680B FR9005680B - Ø125mm (2)
2 NOZZLES OPTION Ø150 mm (2) - FR9005670B FR9005670B FR9005670B FR9005670 FR9005670B -
LEGS OPTION (3) FR9007270B FR9007280B FR9007300B FR9007300B FR9007260B FR9007300B -
COATING 4 - - - - FR9002400B - -
BEAM PROTECTION KIT FR9005800B FR9005800B FR9005800B FR9005800B FR9005800B FR9005800B FR9005800B OPTION
CLADDING
( 4 )
TURBINE
( 1 )
BEAM PROTECTION KIT
NOZZLES ( 5 )
( 2 )
LEGS
( 3 )
