NEW
67 to 150

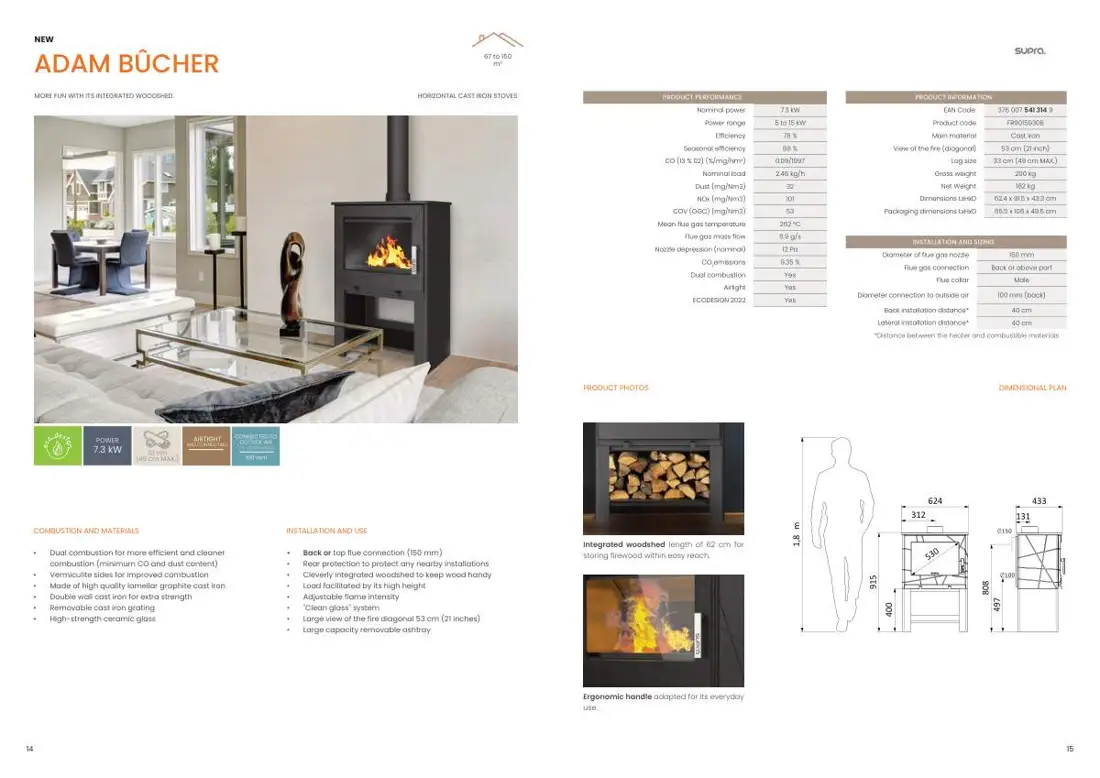

m²ADAM BÛCHER
MORE FUN WITH ITS INTEGRATED WOODSHED. HORIZONTAL CAST IRON STOVES PRODUCT PERFORMANCE PRODUCT INFORMATION
Nominal power 7.3 kW EAN Code: 376 007 541 314 9
Power range 5 to 15 kW Product code FR9015930B
Efficiency 78 % Main material Cast iron
Seasonal efficiency 68 % View of the fire (diagonal) 53 cm (21 inch)
CO (13 % 02) (%/mg/Nm3) 0.09/1097 Log size 33 cm (49 cm MAX.)
Nominal load 2.46 kg/h Gross weight 200 kg
Dust (mg/Nm3) 32 Net Weight 182 kg
NOx (mg/Nm3) 101 Dimensions LxHxD 62.4 x 91.5 x 43.3 cm
COV (OGC) (mg/Nm3) 53 Packaging dimensions LxHxD 65.5 x 106 x 49.5 cm
Mean flue gas temperature 262 °C
Flue gas mass flow 6.9 g/s
INSTALLATION AND SIZING
Nozzle depression (nominal) 12 Pa
Diameter of flue gas nozzle 150 mm
CO2emissions 9.35 % Flue gas connection Back or above part
Dual combustion Yes
Flue collar Male
Airlight Yes
Diameter connection to outside air 100 mm (back) ECODESIGN 2022 Yes
Back installation distance* 40 cm
Lateral installation distance* 40 cm
*Distance between the heater and combustible materials
PRODUCT PHOTOS DIMENSIONAL PLAN
CONNECTED TO AIRTIGHT POWER OUTSIDE AIR AND CONNECTIBLE
7.3 kW 33 cm (in diameter)
(49 cm MAX.) 100 mm
COMBUSTION AND MATERIALS INSTALLATION AND USE
Integrated woodshed length of 62 cm for
• Dual combustion for more efficient and cleaner • Back or top flue connection (150 mm) storing firewood within easy reach.
combustion (minimum CO and dust content) • Rear protection to protect any nearby installations
• Vermiculite sides for improved combustion • Cleverly integrated woodshed to keep wood handy
• Made of high quality lamellar graphite cast iron • Load facilitated by its high height
• Double wall cast iron for extra strength • Adjustable flame intensity
• Removable cast iron grating • "Clean glass" system
• High-strength ceramic glass • Large view of the fire diagonal 53 cm (21 inches)
• Large capacity removable ashtray
Ergonomic handle adapted for its everyday
use.
